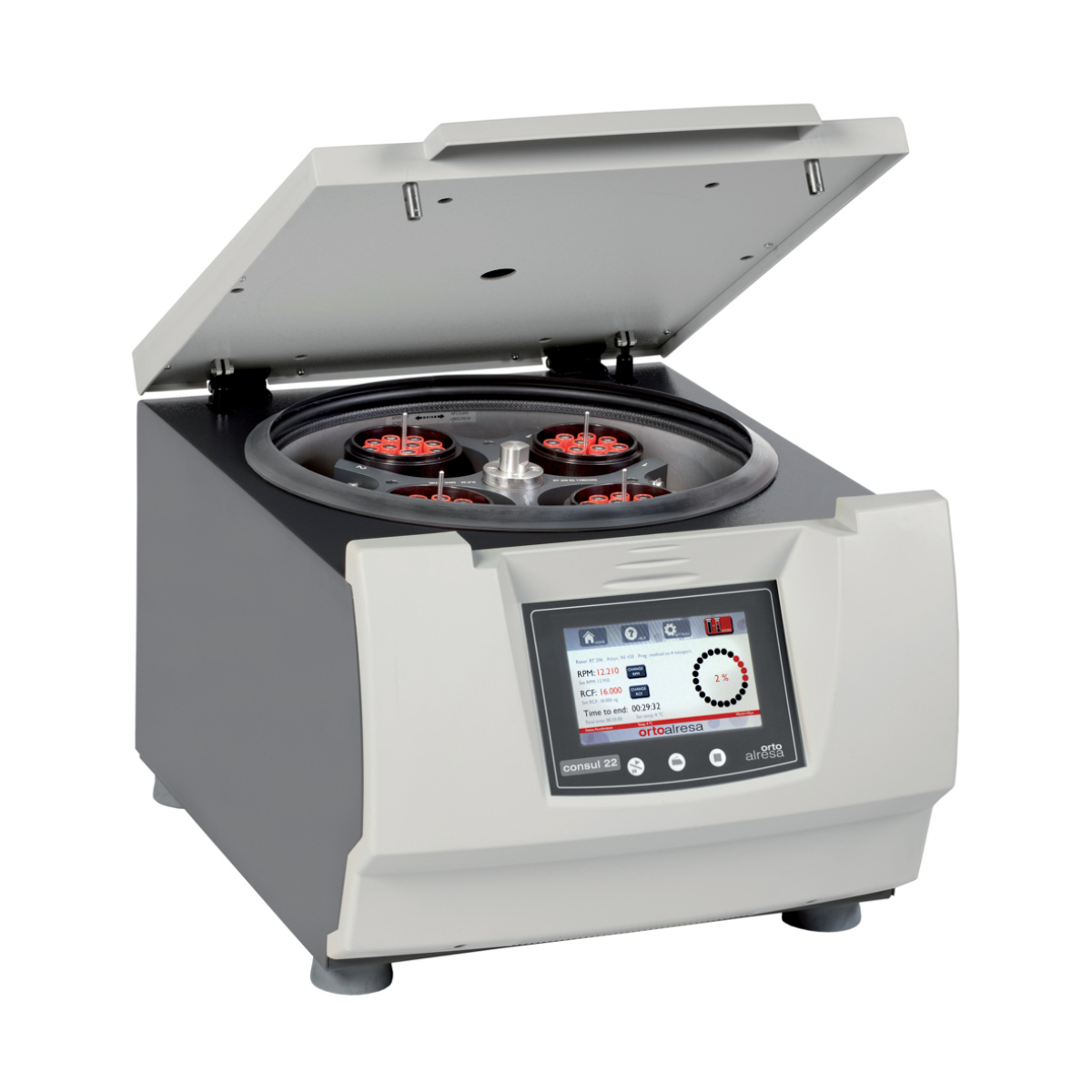

Ortoalresa Consul 22 R Refrigerated High-Capacity Centrifuge

Max Capacity: 4 × 400 ml
Max Speed: 14,300 RPM / 21,948 xg

Display: TFT Colour Touchscreen, visible from >3 m

Version: Refrigerated

Cooling System: Maintains 4 °C at max RPM, range –20 °C to +40 °C

Refrigerant: Gas R 449A HFO (CFC free)

Control: Microprocessor controlled, PC connection

Timer: 1 sec to 99 hours programmable
Noise Level: <60 dB

Safety: Automatic lid lock, unbalance detection, overspeed protection, stainless steel chamber

Dimensions (W × D × H): 670 × 730 × 400 mm

Net Weight: 98 kg

Voltage / Frequency: 220–230 V / 110–120 V | 50–60 Hz
Power Consumption: 800 W

Q1: What makes the Ortoalresa Consul 22 R centrifuge unique?

It combines high-capacity performance (4 × 400 ml) with an advanced refrigeration system, ensuring chamber temperatures remain below 4 °C, even at full speed.

Q2: Can the Consul 22 R be used for multiple applications?

Yes. It supports swing-out rotors, microplate rotors, and high-speed fixed-angle rotors, making it versatile for clinical, research, and industrial labs.

Q3: How does the Consul 22 R ensure sample safety?

Safety systems include unbalance detection with automatic shut-off, overspeed protection, motorised double lid lock, and stainless steel chamber construction.

Q4: Is the Consul 22 R user-friendly?

Absolutely. It offers a TFT touchscreen, PC connectivity, automatic rotor recognition, up to 100 stored programs, and ergonomic lid closure.

Q5: What is the temperature range of the Consul 22 R?

The refrigerated chamber maintains –20 °C to +40 °C, programmable in 1 °C increments, guaranteeing sample integrity across multiple applications.

Consul 22 R Guide PDF

Cleaning & Care Guide

• Lid provided with security systems:
  – Automatic lid lock system, motorized with double lock.
  – Emergency lid-lock release.
  – Locking and protection against opening along the run.
  – Lid dropping protection.
  – Port in the lid for calibration and operation checking.
• Ergonomic design that allows close the lid effortless.
• Unbalance detection and switch off.
• Protection safety ring between the centrifugation chamber and the housing.
• Chamber of centrifugation in stainless steel (easy cleaning).
• Rotors can be removed with the lid closed.
• Rotors and adapters autoclavable, easy to install by the user.
• Automatic disconnection for energy saving up to 8 h.

The Ortoalresa Consul 22 R is a compact, high-capacity refrigerated centrifuge designed for laboratories that require precision, flexibility, and maximum sample protection. With its advanced refrigeration system, the Consul 22 R guarantees chamber temperatures below 4 °C, even at maximum speed, ensuring sample integrity during extended runs.

Featuring a TFT colour touchscreen, the centrifuge allows intuitive operation, precise parameter control, and the ability to export data for traceability. Its versatility supports swing-out rotors (up to 400 ml per bucket), microplate rotors, and high-speed fixed-angle rotors, making it suitable for a wide range of laboratory applications.

The Consul 22 R is engineered for efficiency, with programmable cycles, linked programmes, and up to 100 password-protected memories. Its automation and safety systems — including unbalance detection, overspeed protection, and a motorised double lid lock — provide reliability and peace of mind.

This centrifuge represents a perfect balance between performance, sample safety, and user-friendly operation, backed by Ortoalresa’s 75 years of expertise.
