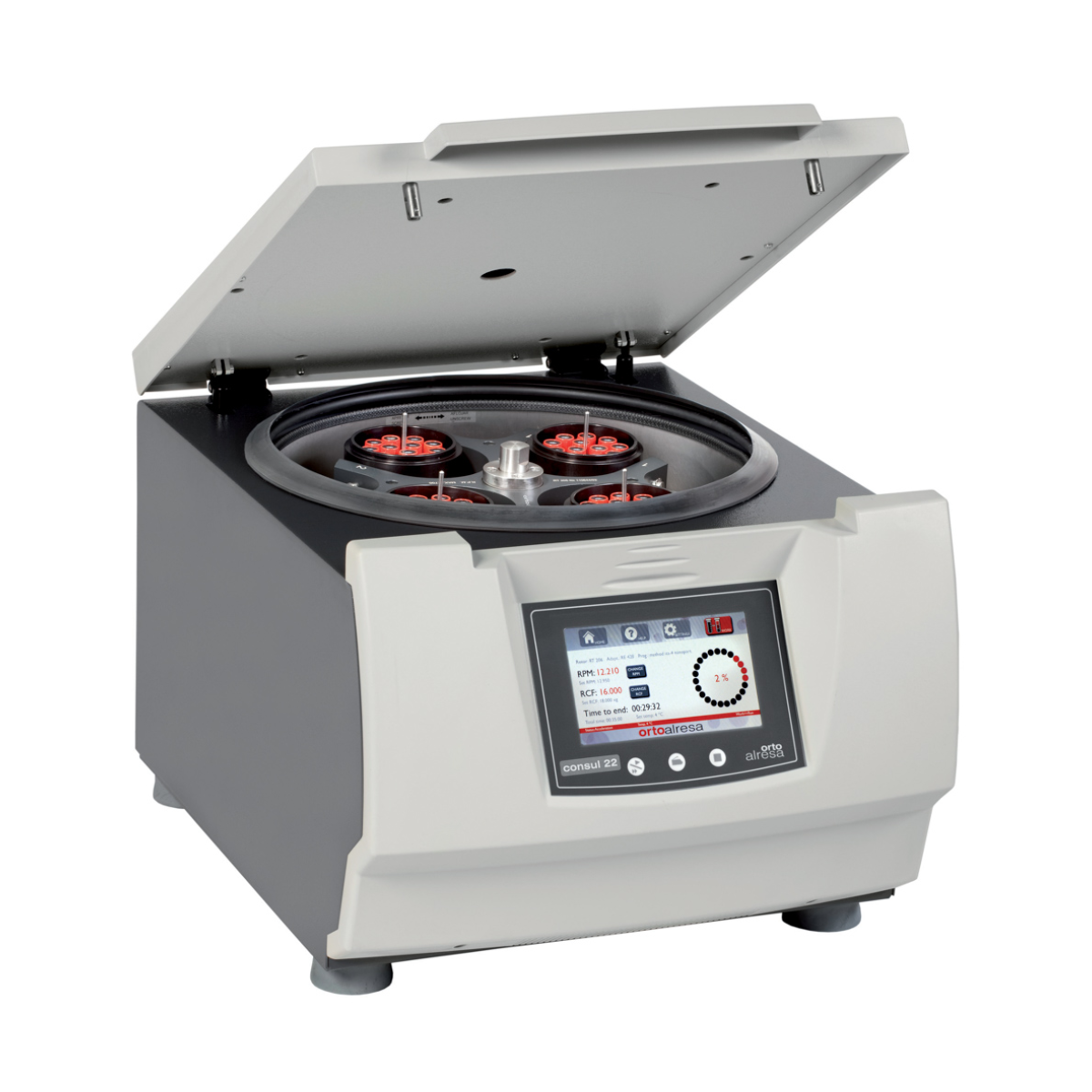

Ortoalresa Consul 22 High-Capacity Centrifuge

Max Capacity: 4 × 400 ml

Max Speed: 14,300 RPM / 21,948 xg
Display: TFT Colour Touchscreen (visible from >3m)
Version: Ventilated
Control: Microprocessor controlled, PC connectivity
Timer: 1 sec to 99 hours, programmable in 1-sec steps
Noise Level: <60 dB
Safety: Automatic lid lock, unbalance detection, overspeed protection, stainless steel chamber
Dimensions (W × D × H): 490 × 600 × 400 mm
Net Weight: 59 kg
Voltage / Frequency: 220–230 V / 110–120 V | 50–60 H

Power Consumption: 600 W

Q1: What makes the Ortoalresa Consul 22 centrifuge unique?

The Consul 22 combines compact design with high-capacity performance (4 x 400 ml) and advanced features like a TFT touchscreen, automation, and data export, typically only found in larger centrifuges.

Q2: Is the Consul 22 suitable for different rotor types?

Yes. It supports swing-out rotors, fixed-angle rotors, and microplate rotors, offering full versatility for a wide range of laboratory applications.

Q3: How does the Consul 22 improve lab efficiency?

With programmable cycles, up to 100 stored programs, and linked programme operation, it saves setup time, improves reproducibility, and ensures process traceability.

Q4: What safety features are included?

It offers automatic lid lock, unbalance detection with shut-off, overspeed protection, stainless steel chamber, and ergonomic lid closure, ensuring maximum operator safety.

Q5: Does the Consul 22 meet EU standards?

Yes, it complies with all major EU directives and safety standards including EN 61010 and EN 61326, ensuring reliability and compliance in regulated labs.

Consul 22 Guide PDF

• Lid provided with security systems:
  – Automatic lid lock system, motorized with double lock.
  – Emergency lid-lock release.
  – Locking and protection against opening along the run.
  – Lid dropping protection.
  – Port in the lid for calibration and operation checking.
• Ergonomic design that allows close the lid effortless.
• Unbalance detection and switch off.
• Protection safety ring between the centrifugation chamber and the housing.
• Chamber of centrifugation in stainless steel (easy cleaning).
• Rotors can be removed with the lid closed.
• Rotors and adapters autoclavable, easy to install by the user.
• Automatic disconnection for energy saving up to 8 h.

The Ortoalresa Consul 22 Centrifuge is a compact yet powerful solution for laboratories requiring high-capacity sample processing with maximum efficiency. Designed with advanced features typically found in higher-segment centrifuges, the Consul 22 combines performance, user-friendliness, and safety in one versatile system.

Equipped with a TFT colour touchscreen, the Consul 22 provides intuitive control, real-time performance monitoring, and the ability to export data for traceability and process optimisation. With a maximum capacity of 4 x 400 ml and speeds up to 14,300 RPM / 21,948 xg, it is ideal for a wide range of applications.

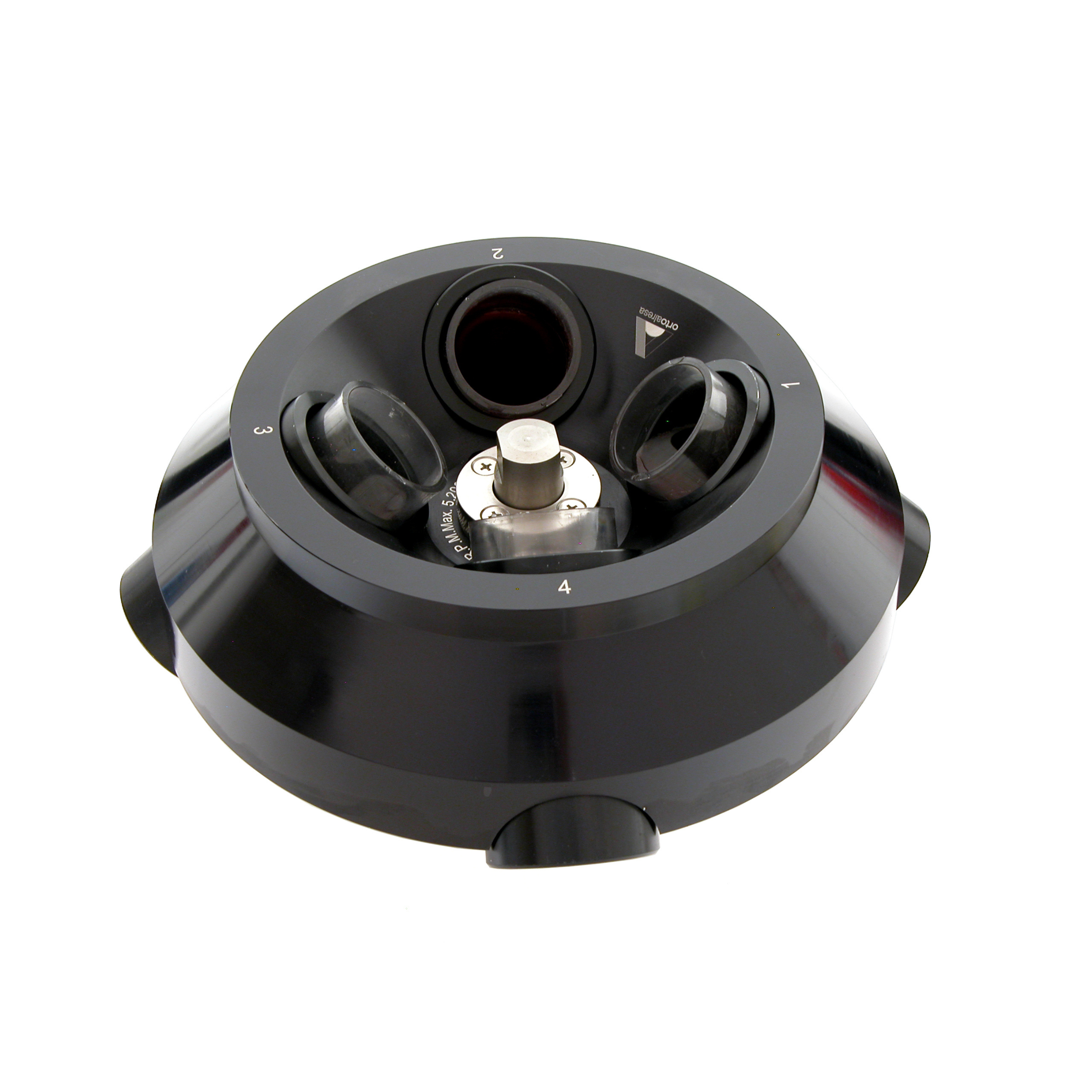

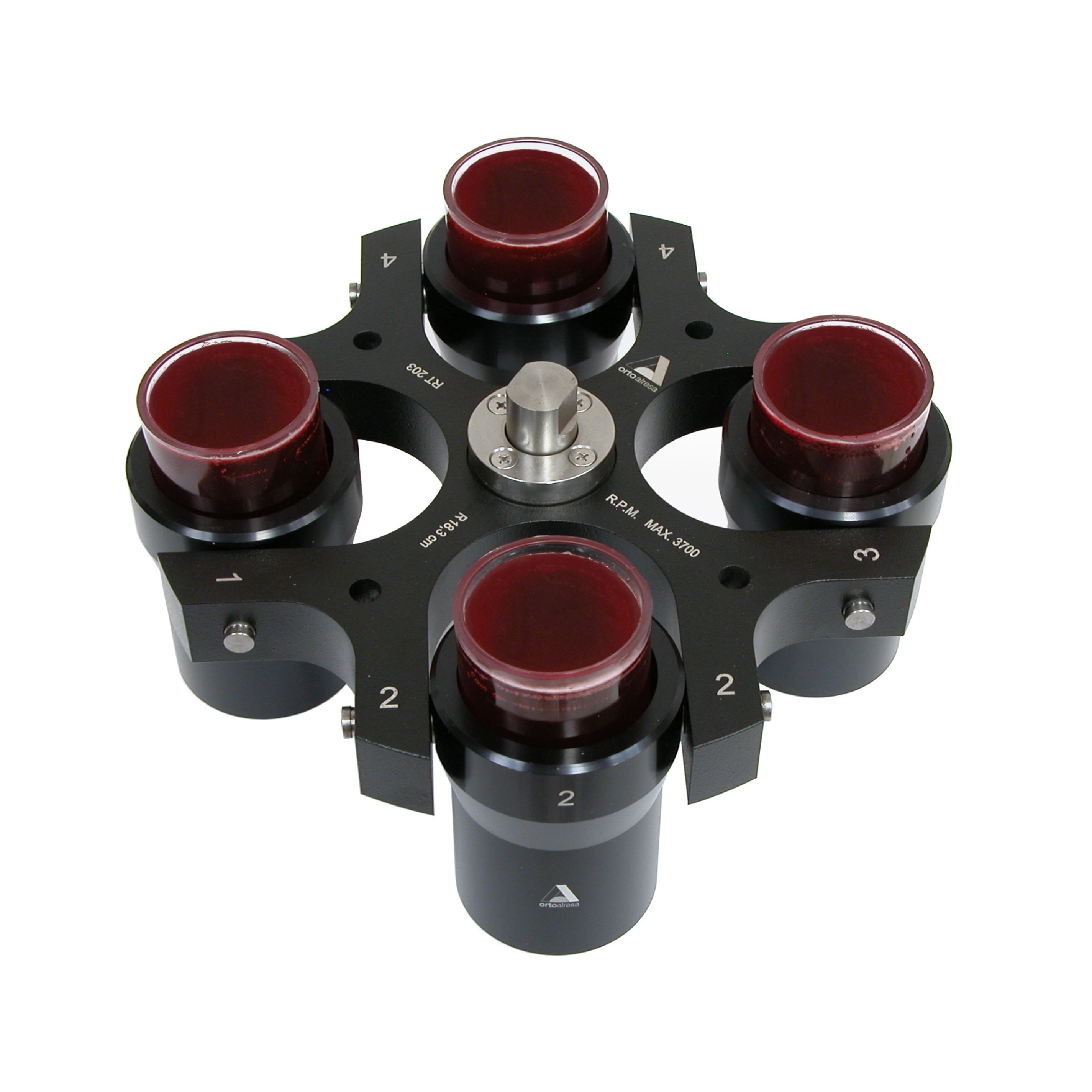

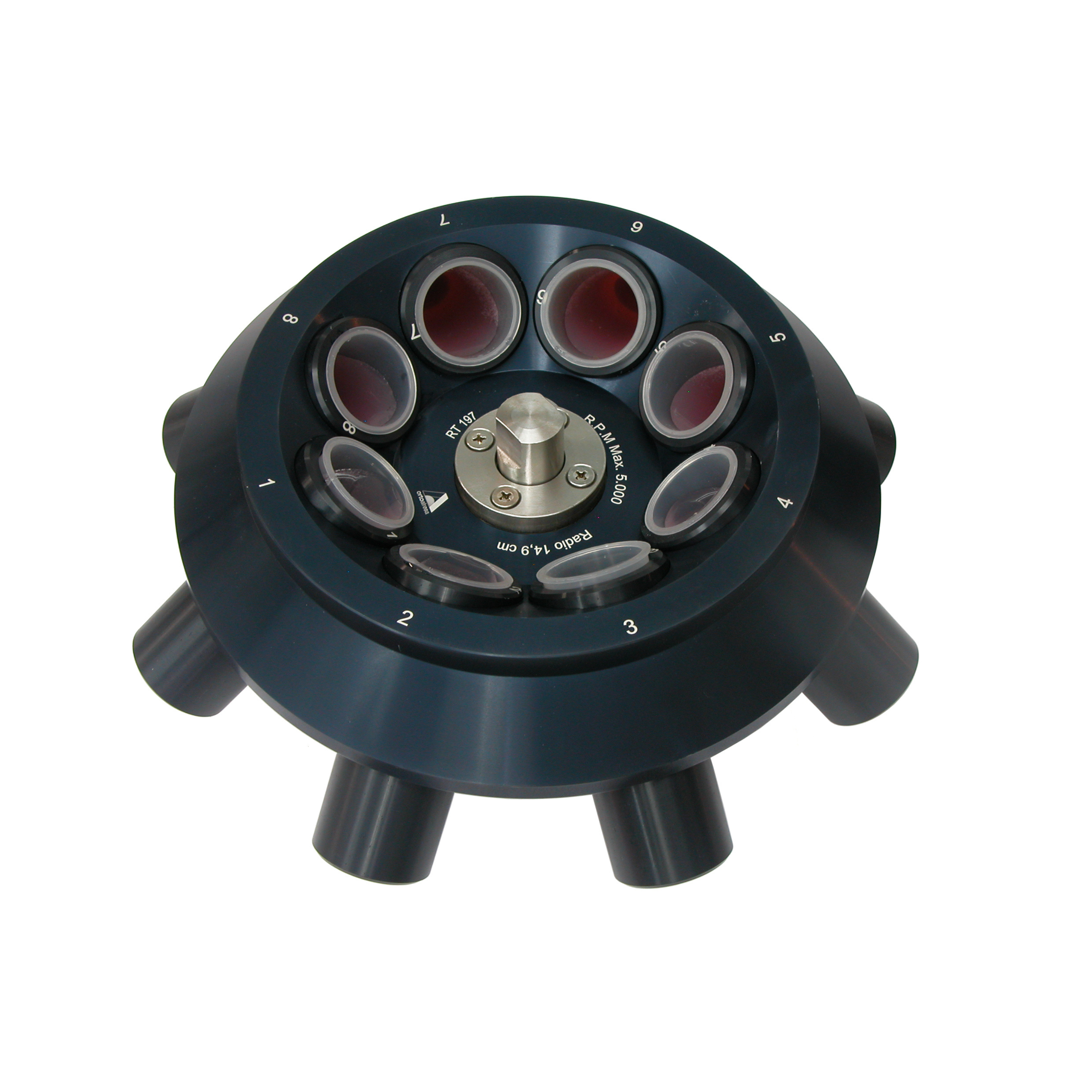

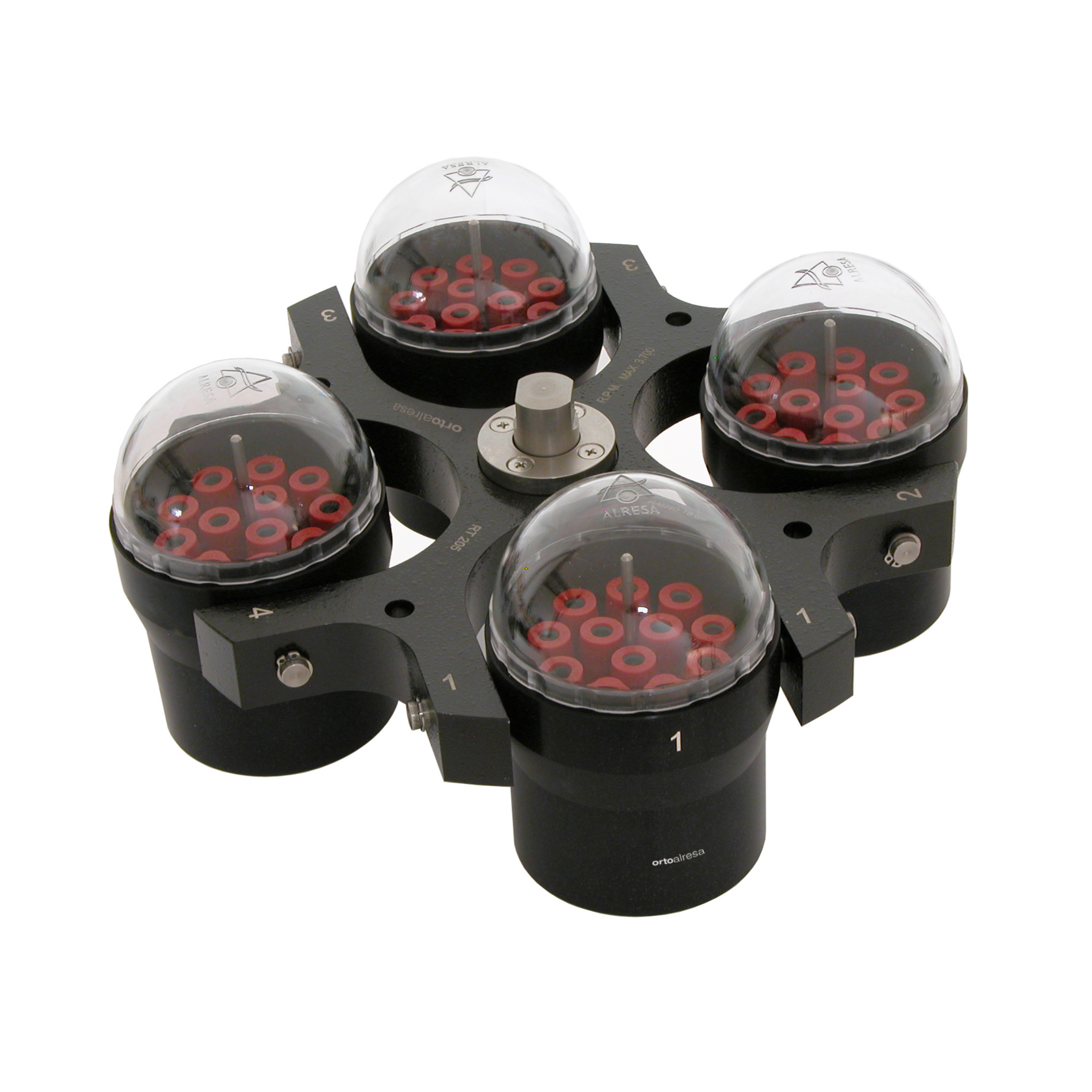

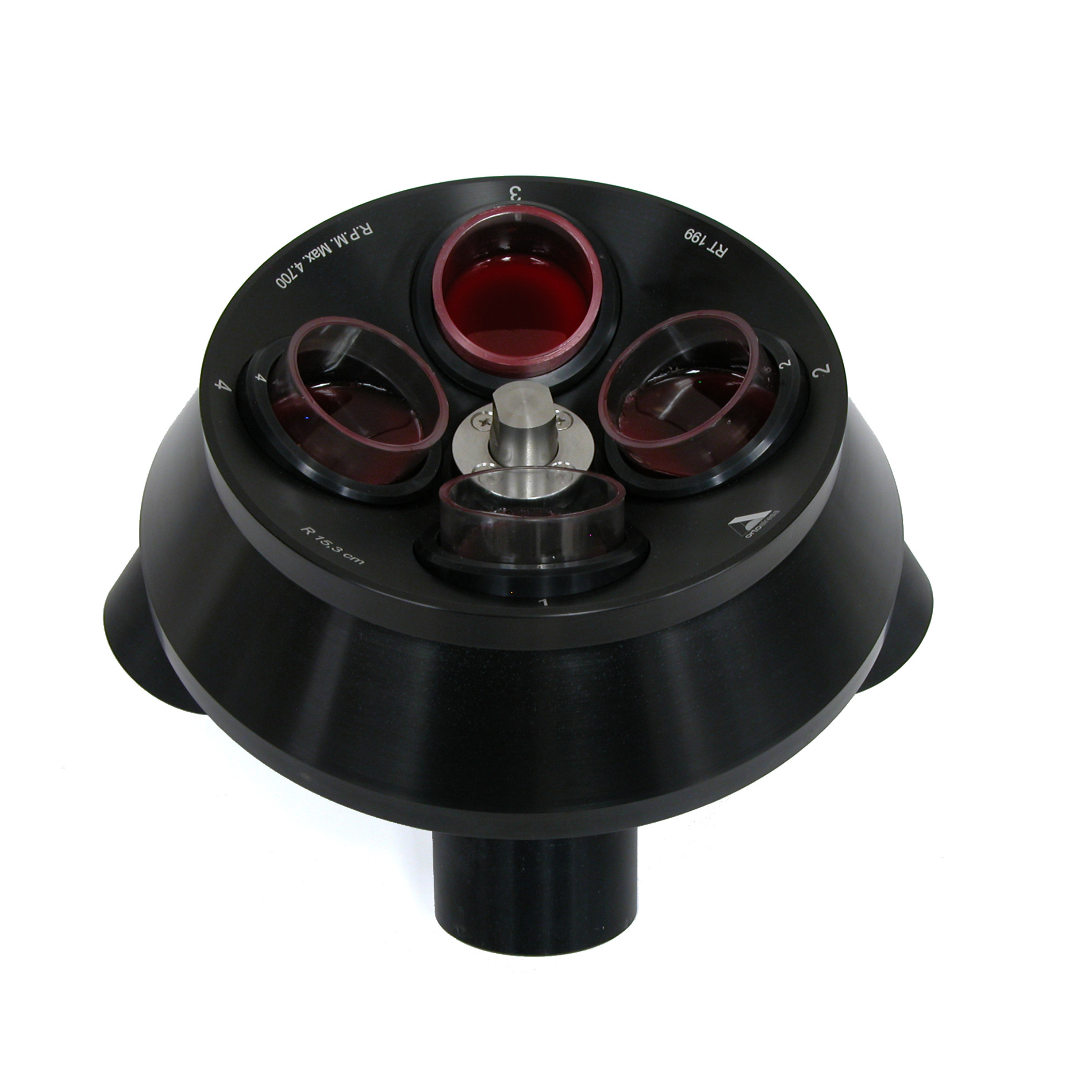

This centrifuge is engineered for flexibility, supporting swing-out rotors for large volumes, microplate rotors, and high-speed fixed-angle rotors for microtubes. Its automation features, including programmable cycles, PC connectivity, and up to 100 password-protected programs, allow laboratories to save time and ensure reproducibility.

Like all Ortoalresa centrifuges, the Consul 22 is built with safety at its core — featuring advanced lid-locking mechanisms, unbalance detection, stainless steel chamber, and overspeed protection.

Choose the Consul 22 for a centrifuge that delivers precision, capacity, and peace of mind, all backed by Ortoalresa’s 75 years of expertise.
