Q1: What makes the Bioprocen 22 R a universal centrifuge?

It supports microtubes (1.5–50 ml), conical tubes, and microplates, making it suitable for multiple assay types in one compact system.

Q2: How does the refrigeration system work?

The Bioprocen 22 R guarantees chamber stability at ≤4 °C, even at maximum RPM, with a programmable temperature range of –20 °C to +40 °C.

Q3: Can I save and repeat programs easily?

Yes. The centrifuge includes 16 programmable memories, ensuring reproducible results across routine workflows.

Q4: What safety features are included?

It has a motorised lid lock with double security, unbalance detection, overspeed protection, stainless steel chamber, and ergonomic design for safe operation.

Q5: Is it suitable for high-speed assays?

Yes. With speeds up to 18,100 RPM / 31,865 xg, it delivers high-performance separation while maintaining sample integrity through advanced cooling.

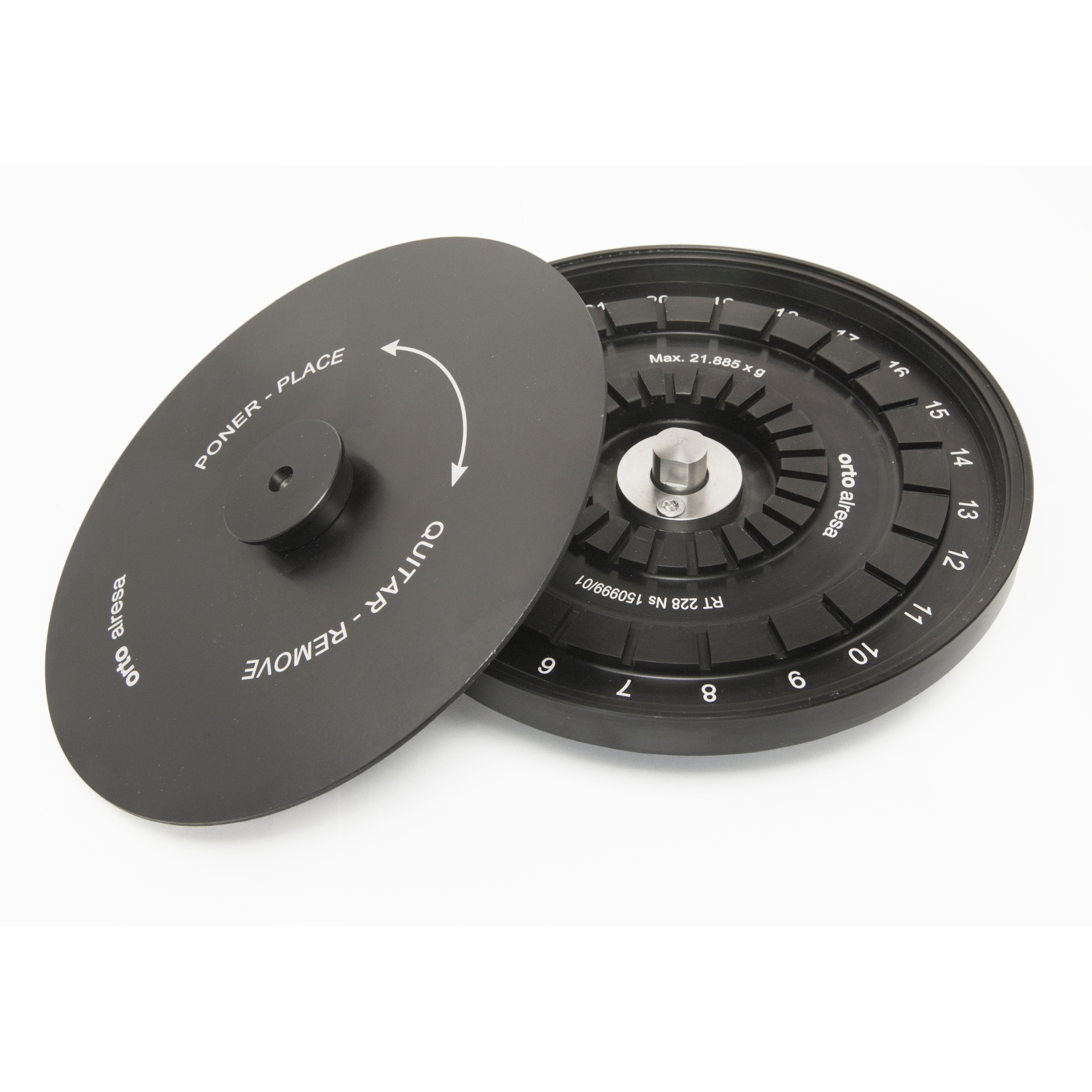

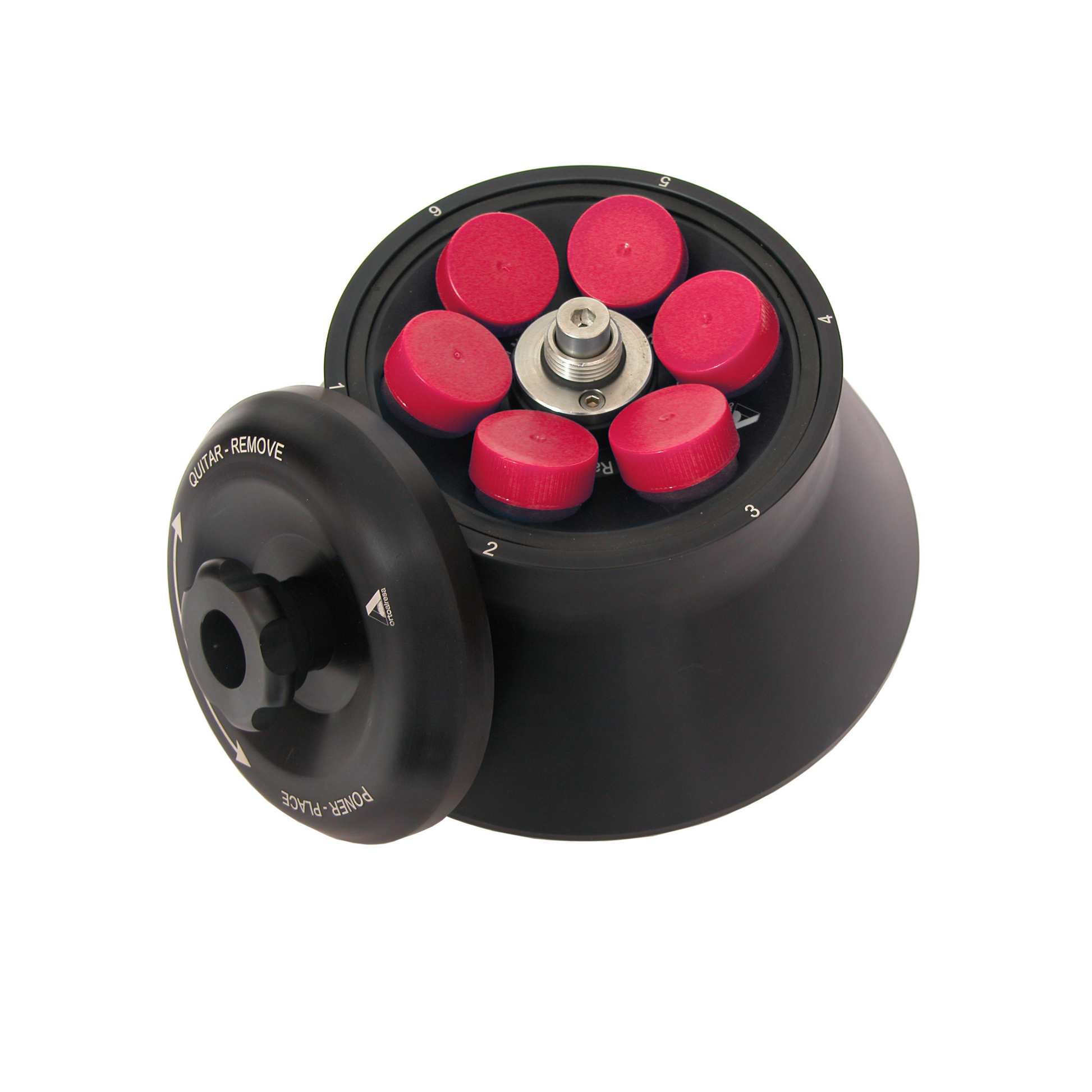

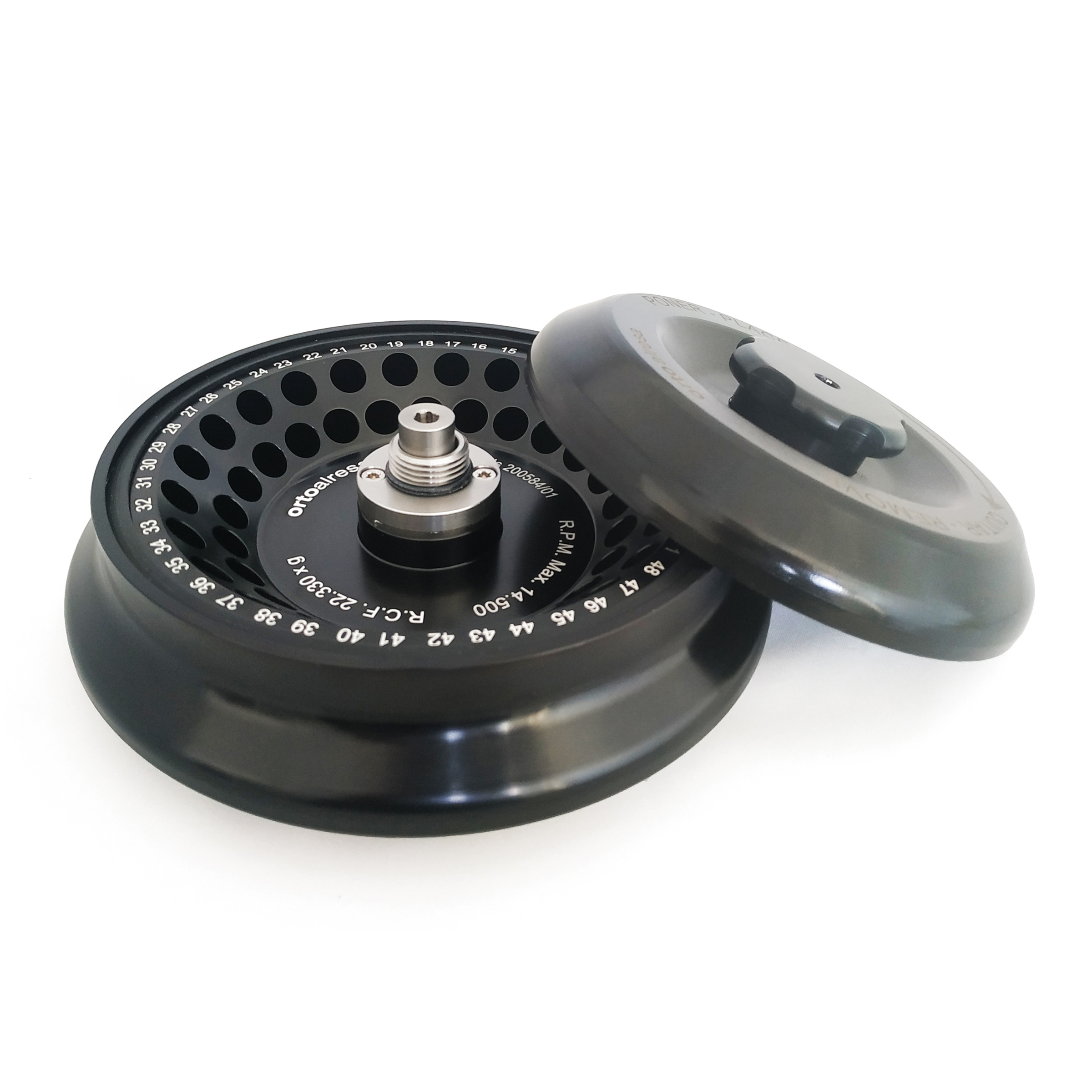

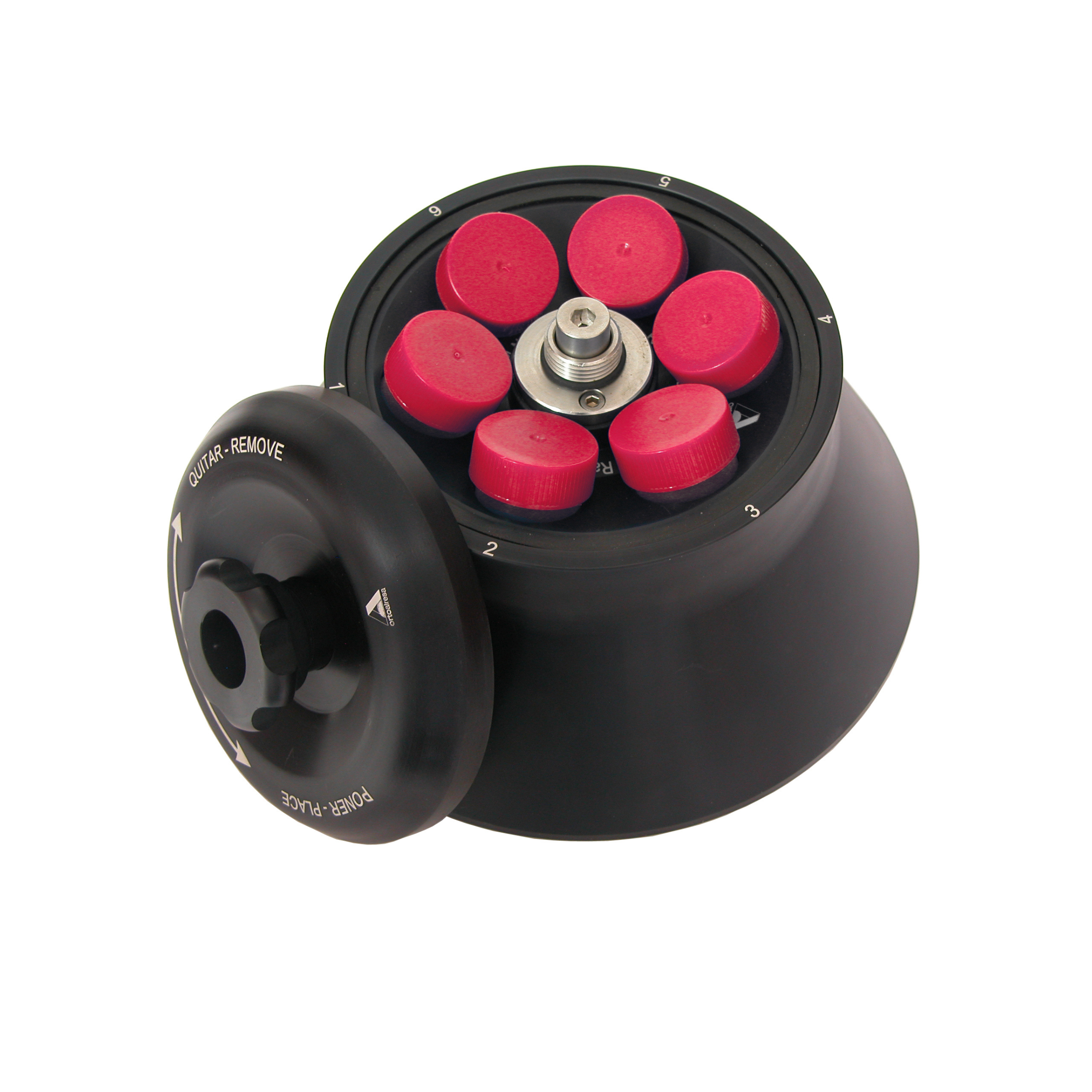

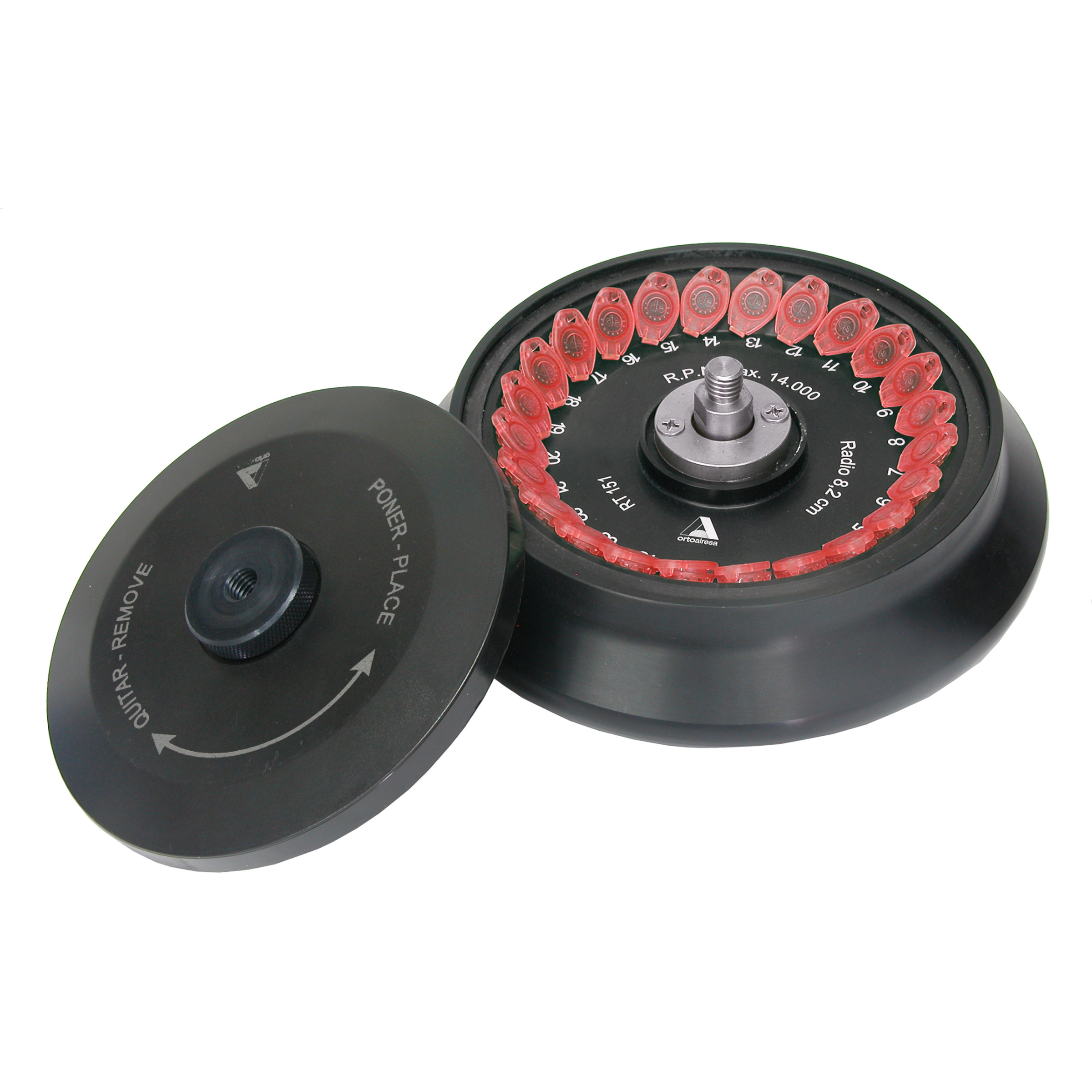

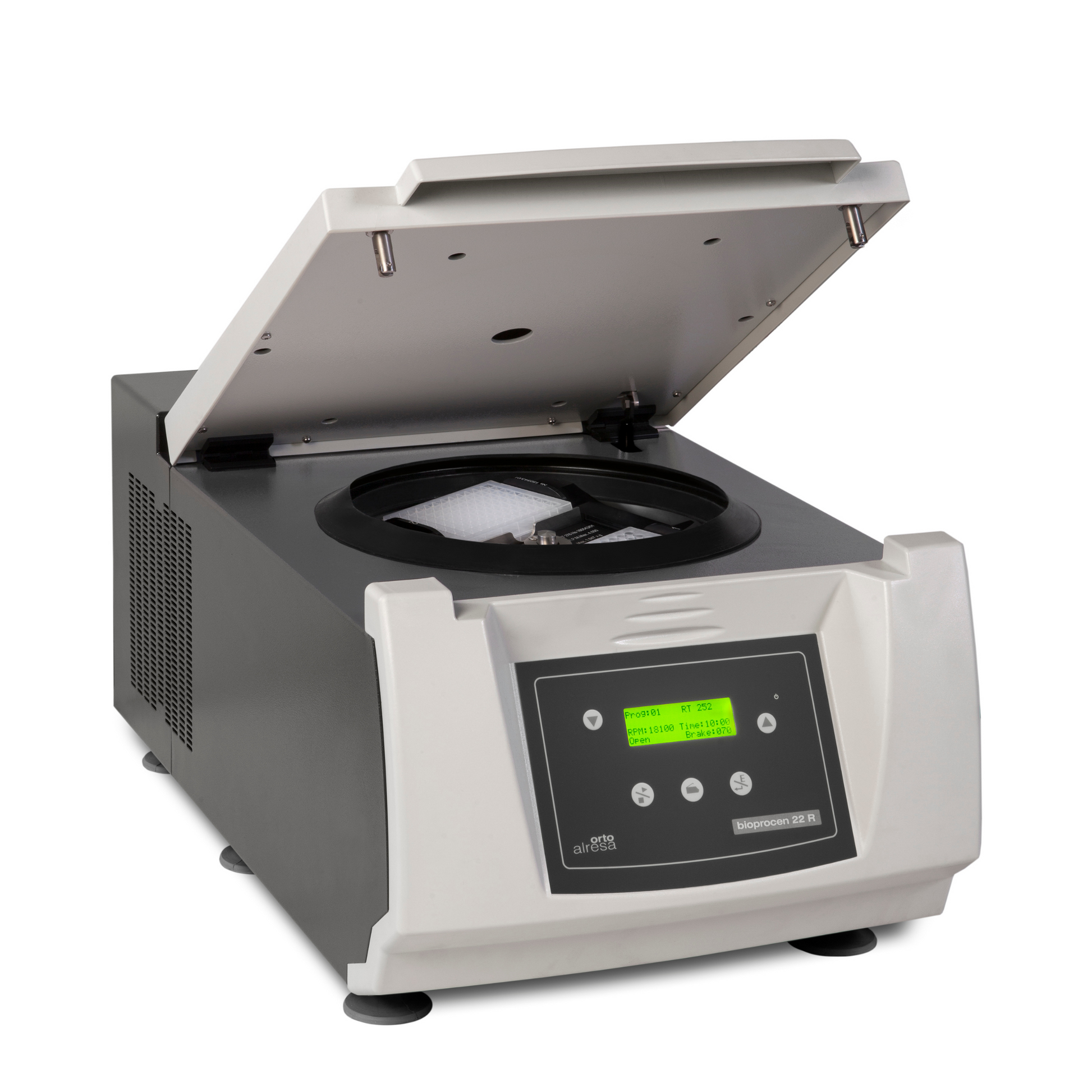

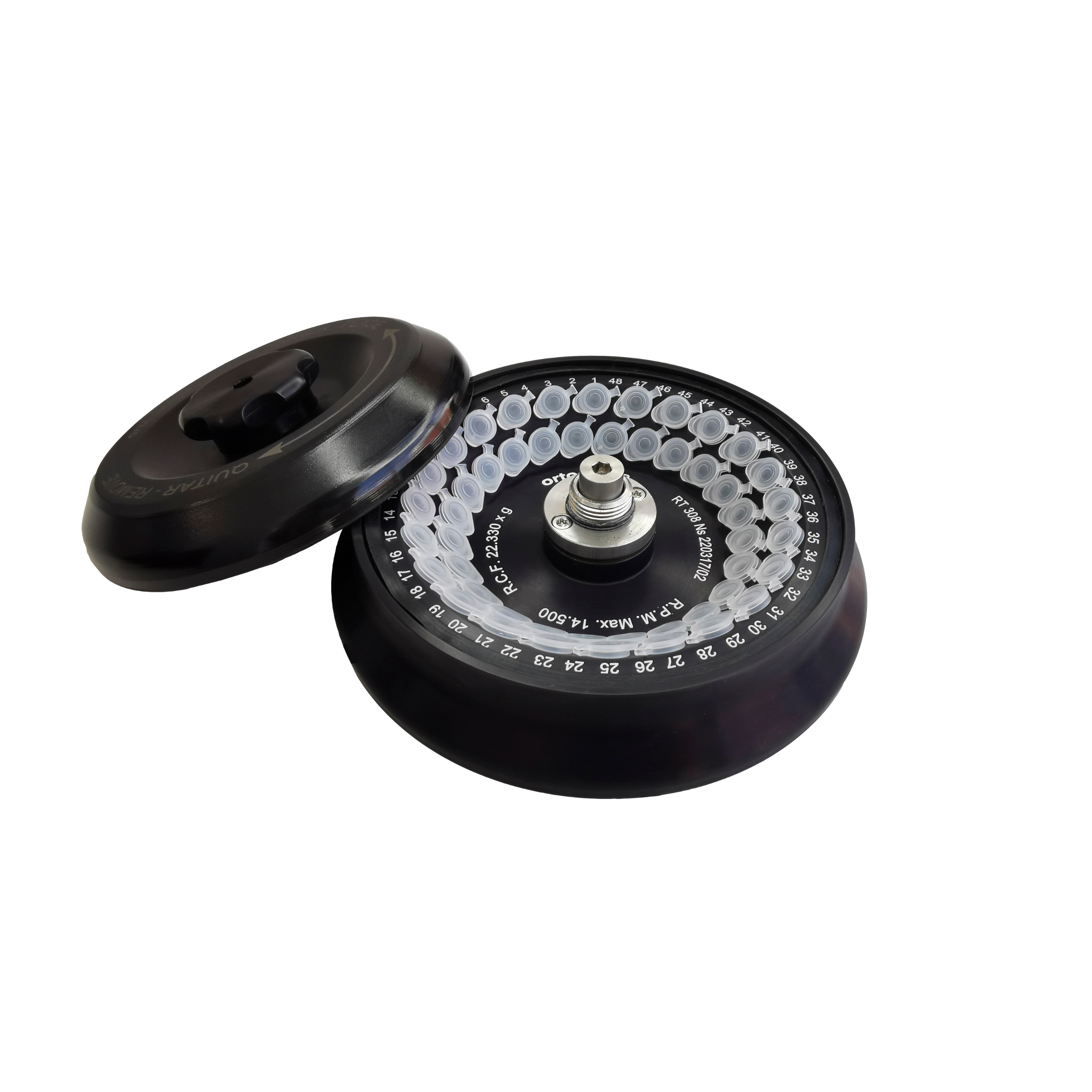

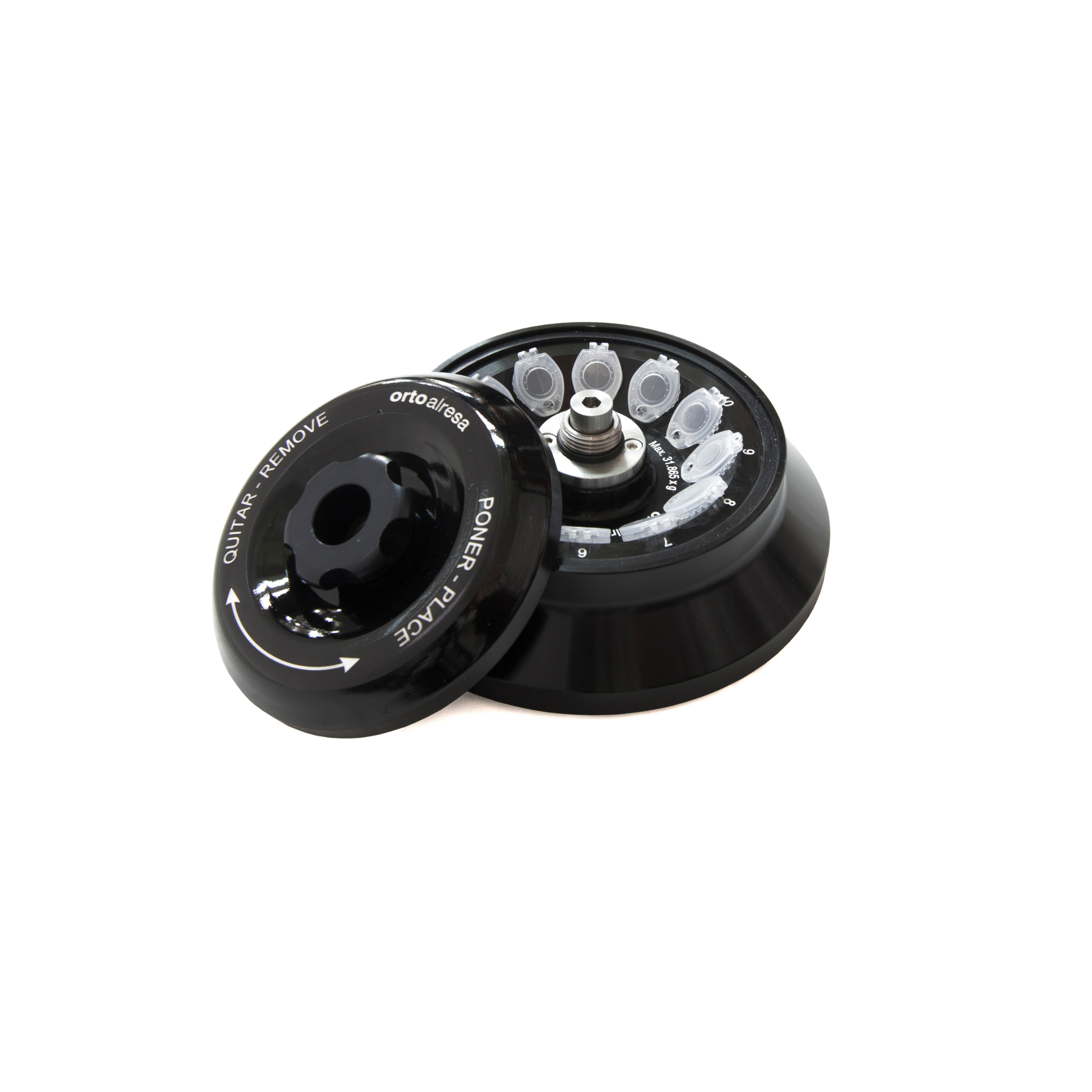

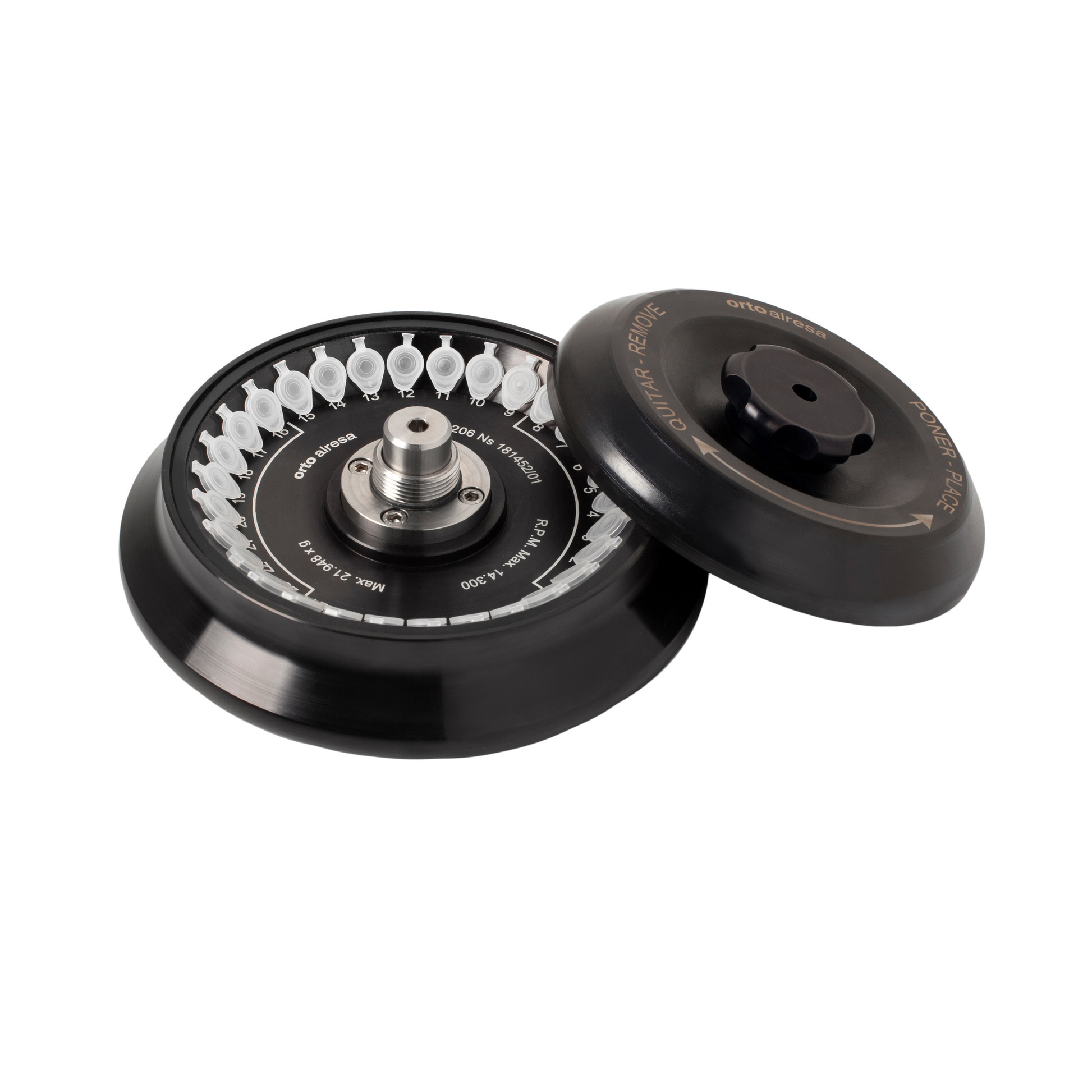

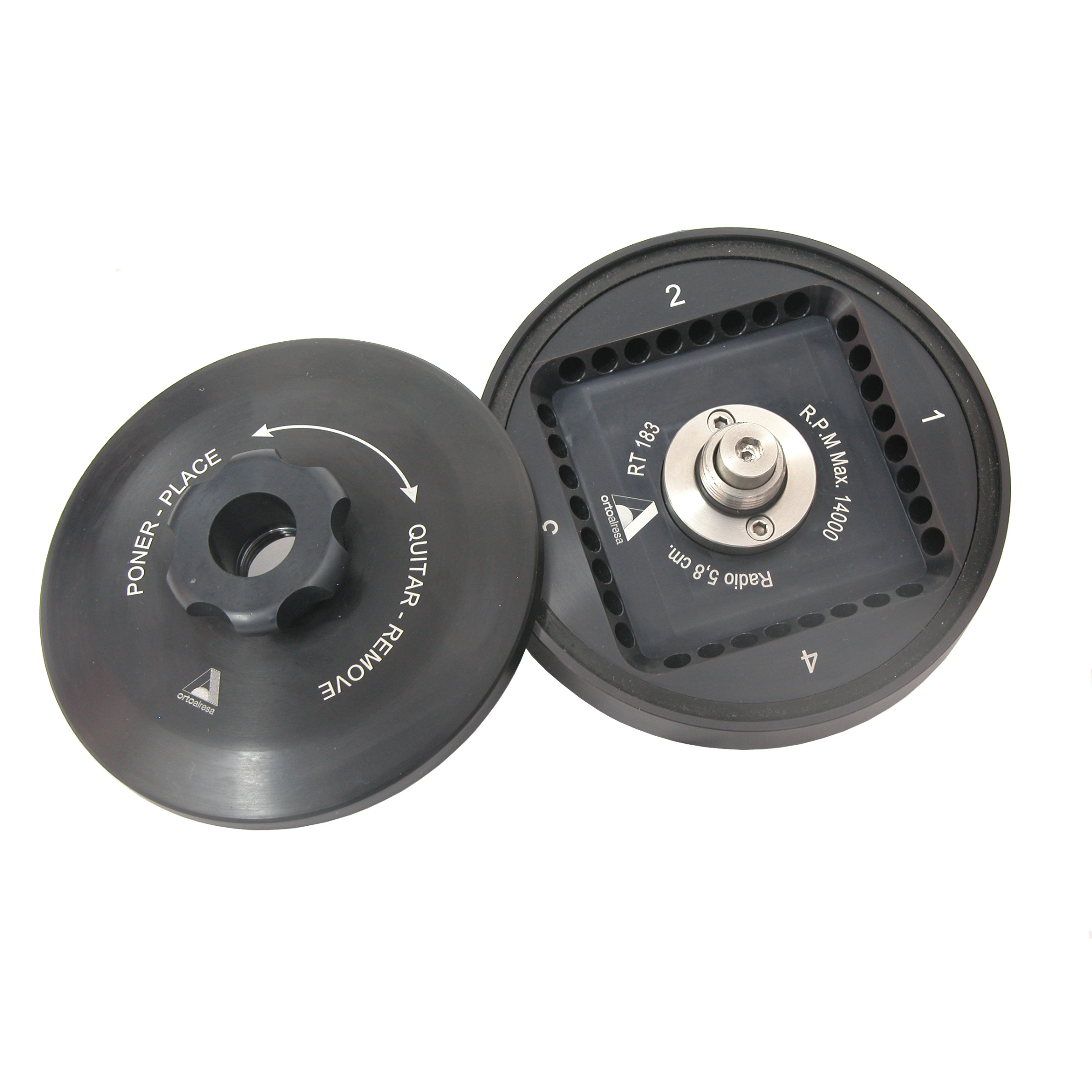

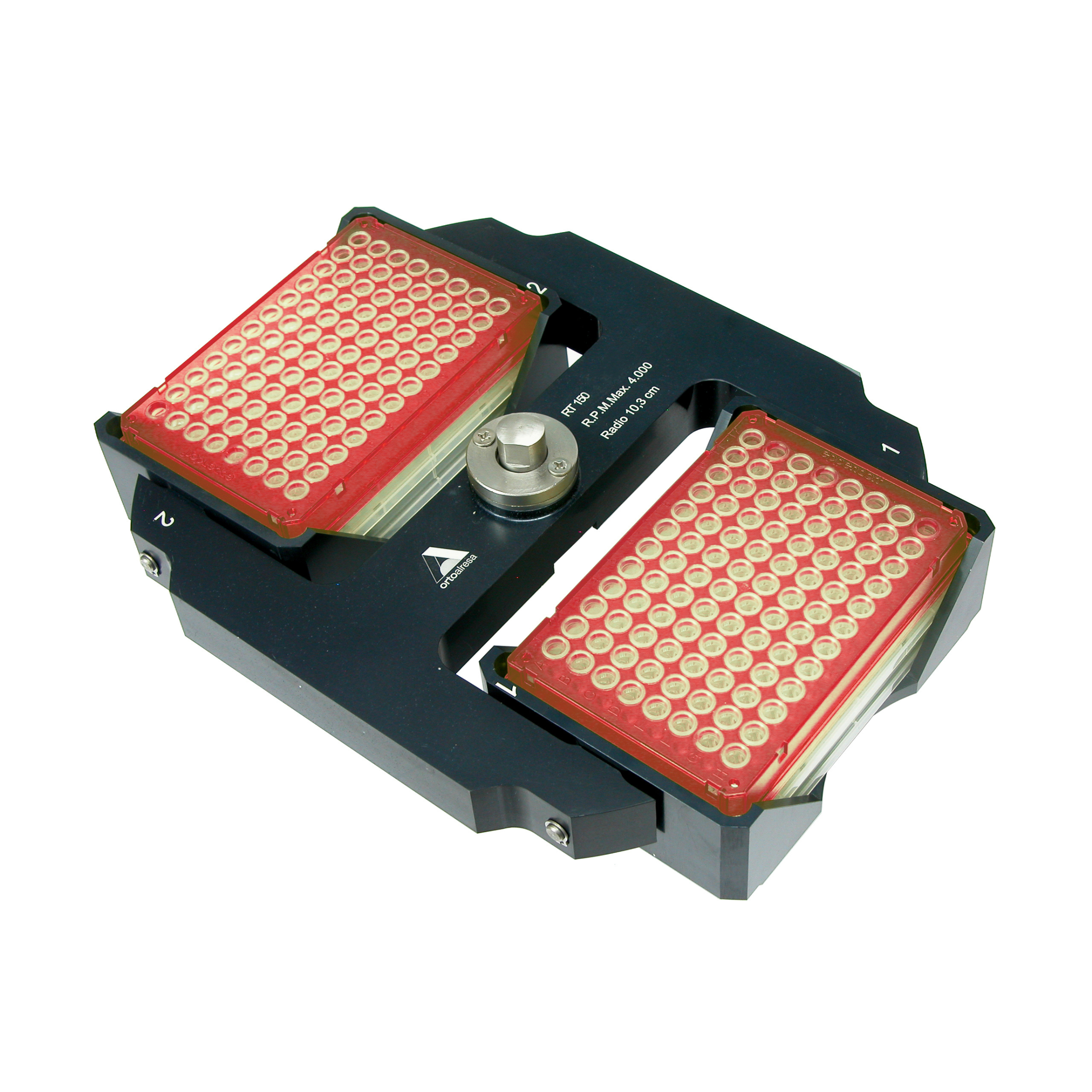

The Ortoalresa Bioprocen 22 R is a universal refrigerated centrifuge engineered to meet the diverse needs of modern laboratories. Its versatile rotor options support microtubes (1.5–50 ml), conical tubes, and microplates, making it ideal for a wide range of assays and applications.

With a maximum speed of 18,100 RPM / 31,865 xg and a chamber capacity of 6 × 50 ml, the Bioprocen 22 R delivers high-performance results in a compact design. Its advanced refrigeration system ensures stable temperatures, maintaining ≤4 °C at maximum speed to protect sensitive samples.

The intuitive LCD screen provides real-time monitoring of RPM, RCF, time, and temperature, alongside 16 programmable memories for reproducible workflows. Features like progressive braking (PCBS), automatic rotor recognition, and PC connectivity further streamline lab routines.

Built with ergonomics, safety, and efficiency in mind, the Bioprocen 22 R includes automatic lid locking, unbalance detection, overspeed protection, and energy-saving auto shut-off. Its durable stainless steel chamber and autoclavable rotors ensure long-term reliability and easy maintenance.

This centrifuge is the perfect all-in-one solution for labs seeking versatility, performance, and sample safety.

Bioprocen Guide PDF

Max Capacity: 6 × 50 ml
Max Speed: 18,100 RPM / 31,865 xg
Display: LCD screen with real-time data
Version: Refrigerated
Cooling System: Maintains 4 °C at max RPM, range –20 °C to +40 °C
Refrigerant: Gas R 449A HFO (CFC free)
Control: Microprocessor controlled, brushless induction motor
Timer: 5 sec–99 min or 1 min–99 hrs, programmable
Noise Level: <60 dB
Memories: 16 programmable
Safety: Automatic lid lock, unbalance detection, overspeed protection
Dimensions (W × D × H): 410 × 690 × 320 mm
Net Weight: 59 kg
Voltage / Frequency: 220–230 V / 110–120 V | 50–60 Hz
Power Consumption: 500 W
