Q1: What tube formats does the Biocen 22 R support?

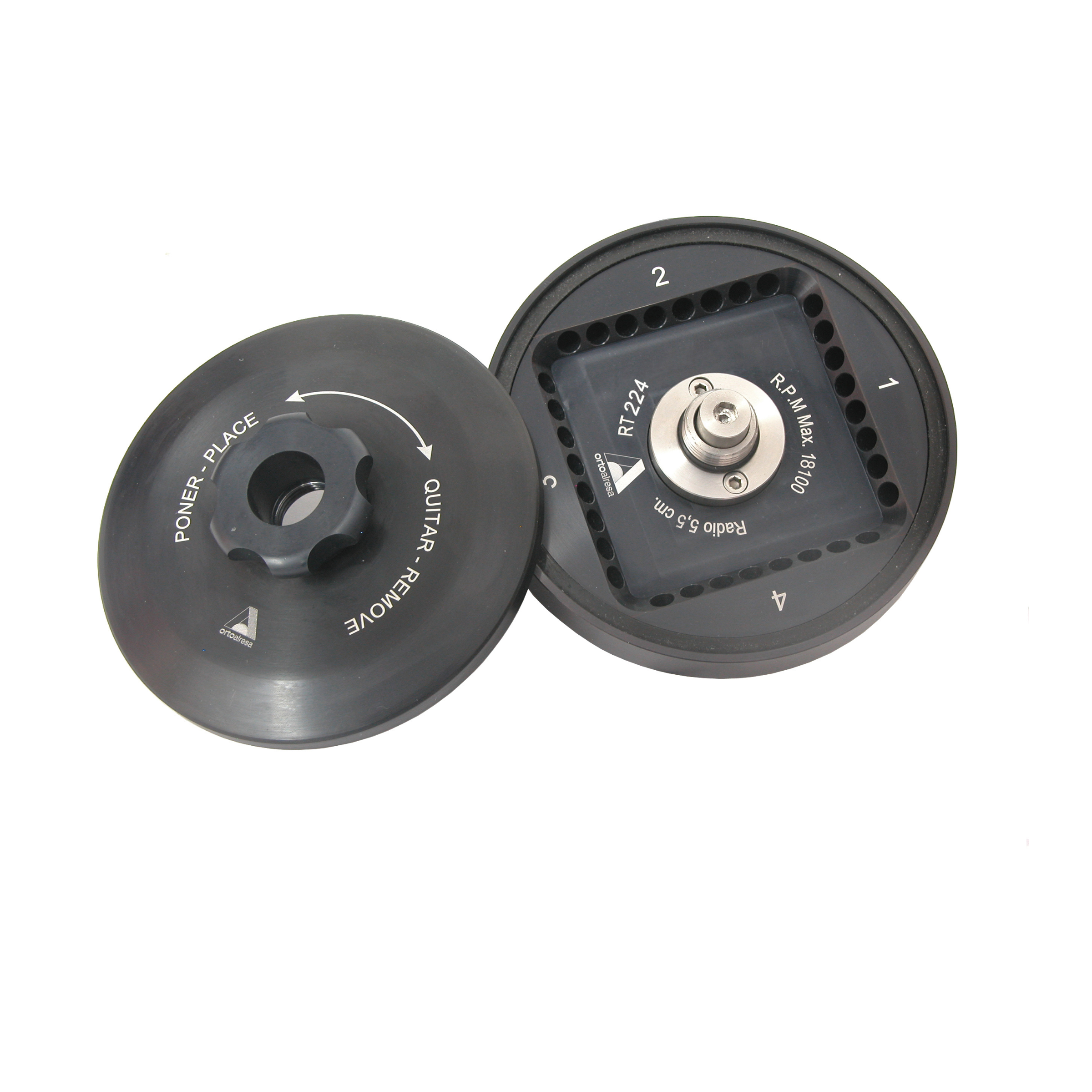

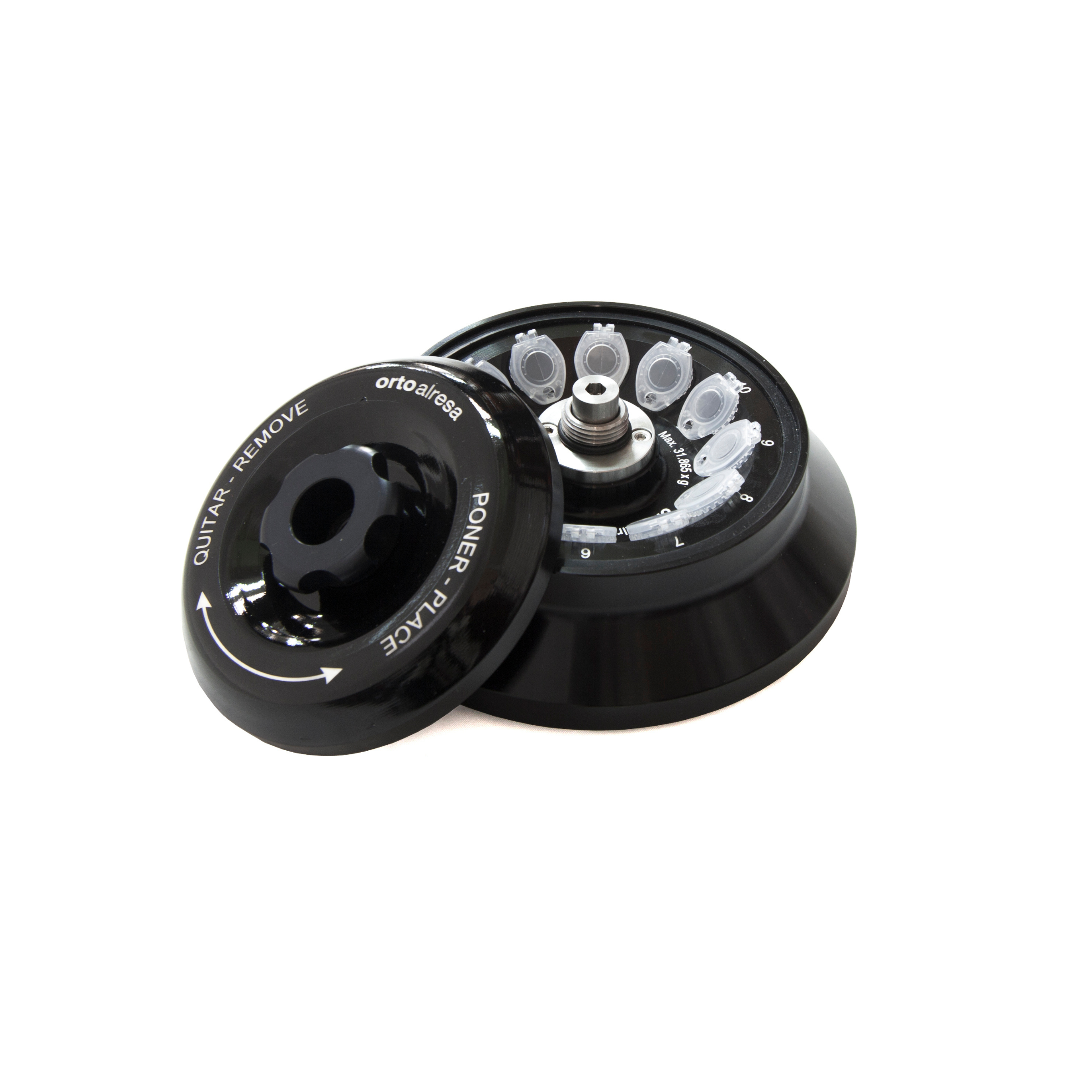

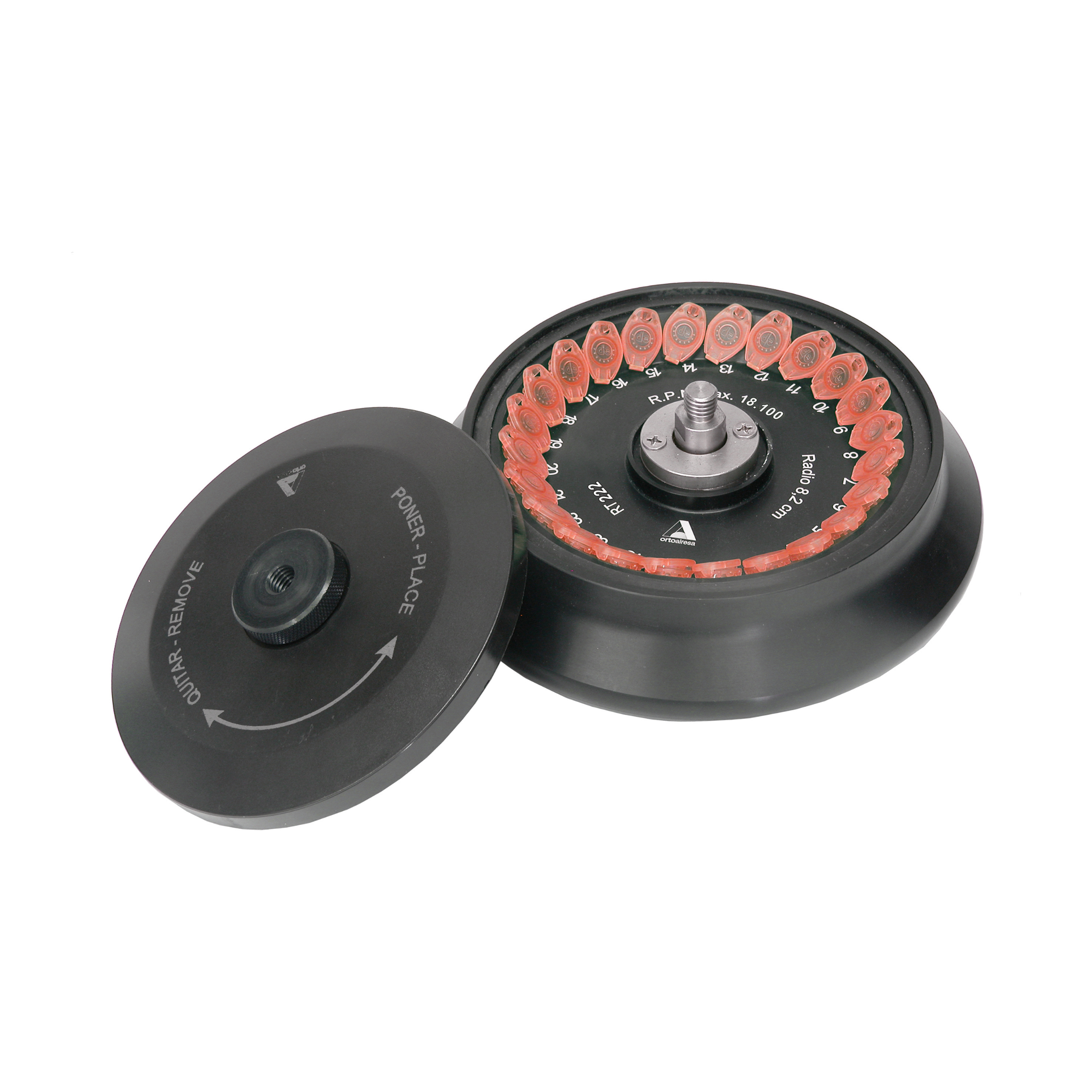

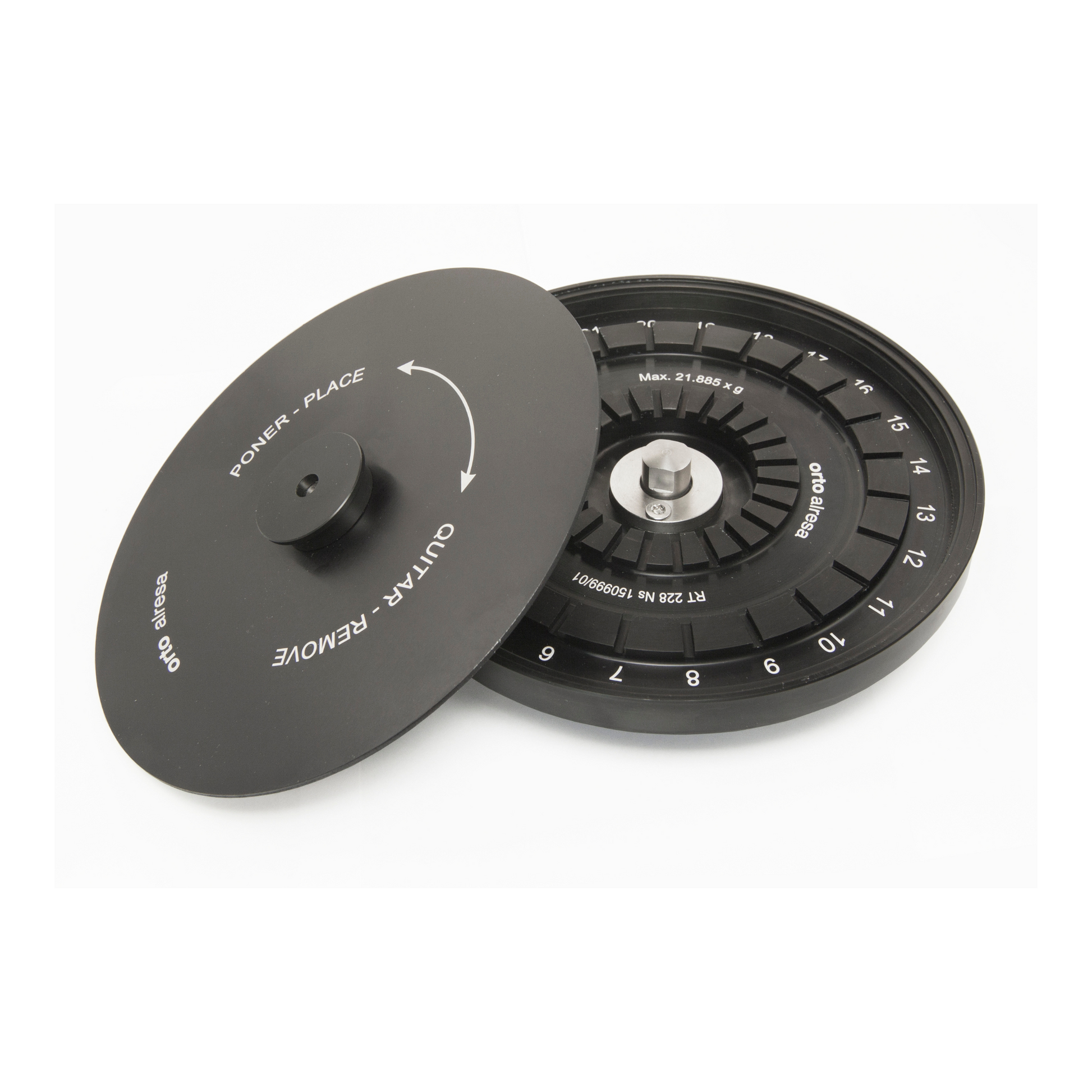

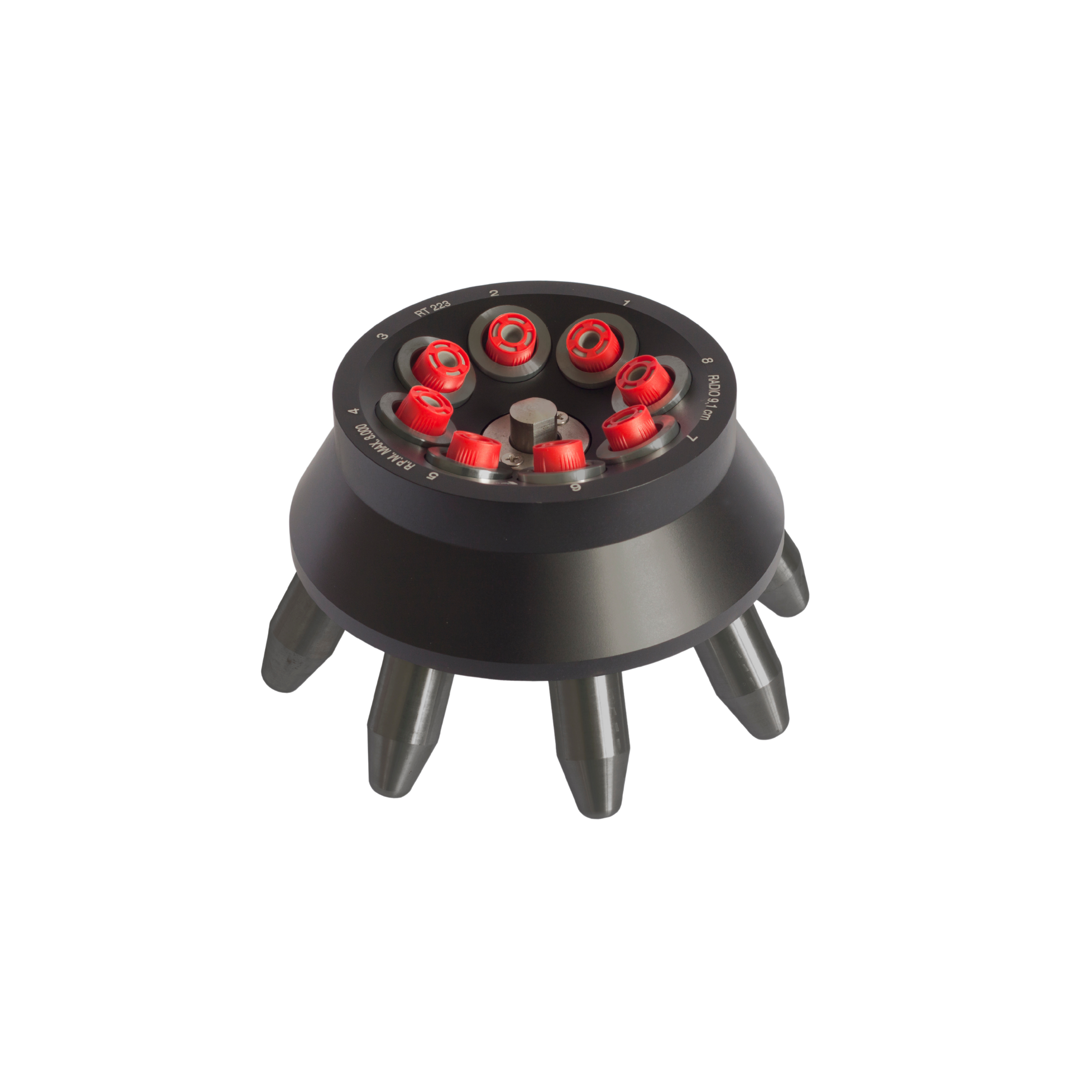

It works with conical tubes from 0.2 ml to 15 ml, plus a range of rotors for capillaries and strip tubes.

Q2: How reliable is the cooling system?

The dynamic refrigeration system rapidly stabilizes temperature and guarantees ≤4 °C at maximum RPM, ensuring sample safety.

Q3: Is it suitable for high-speed assays?

Yes. With speeds up to 18,100 RPM / 31,865 xg, the Biocen 22 R delivers consistent, high-performance separation.

Q4: What safety features does it include?

It has a motorized double lid lock, unbalance detection, overspeed protection, stainless steel chamber, and emergency lid release.

Q5: Can programs be saved for repeat workflows?

Yes. The centrifuge includes 16 programmable memories, ensuring repeatable and traceable results.

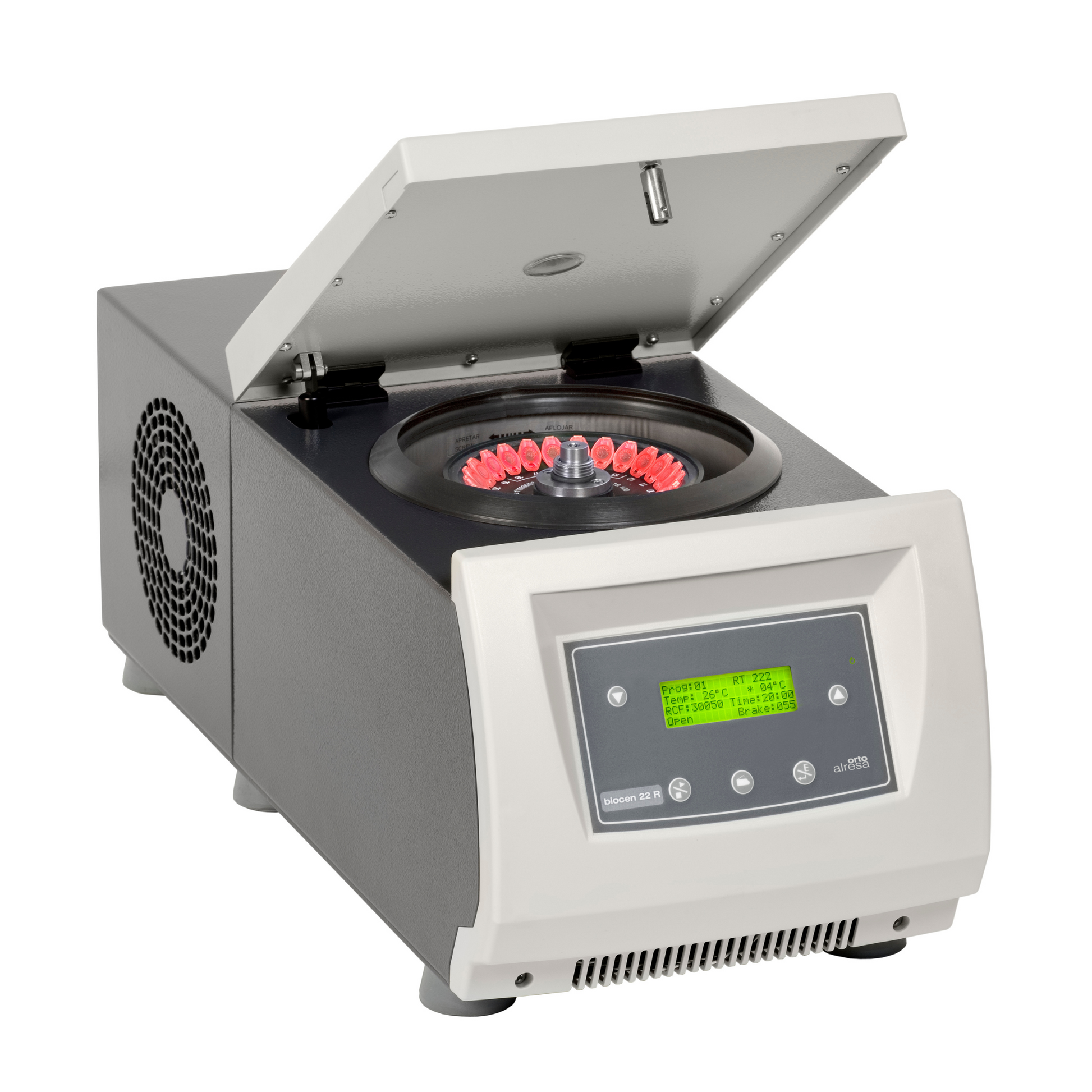

The Ortoalresa Biocen 22 R is a compact refrigerated microcentrifuge designed for laboratories that demand both high speed and flexibility across multiple tube formats. Supporting volumes from 0.2 ml up to 15 ml, it is ideal for molecular biology, biotechnology, and research applications.

Equipped with a powerful dynamic cooling system, the Biocen 22 R ensures rapid temperature stabilization and maintains 4 °C even at maximum rotor speed. Its maximum speed of 18,100 RPM / 31,865 xg guarantees efficient separation for sensitive assays.

The intuitive LCD display provides real-time readouts of RPM, RCF, time, and temperature, along with 16 programmable memories to simplify repeat testing. With advanced features like PCBS braking, automatic rotor recognition, and overspeed protection, the Biocen 22 R combines performance with reliability.

Safety is paramount: the centrifuge includes a motorized double lid lock, unbalance detection, emergency lid release, and stainless steel chamber construction. With autoclavable rotors, ergonomic design, and energy-saving auto shut-off, the Biocen 22 R is engineered for long-term dependable use in demanding laboratory environments.

Biocen Guide PDF

Max Capacity: 8 × 15 ml
Max Speed: 18,100 RPM / 31,865 xg
Display: LCD screen with real-time monitoring
Version: Refrigerated
Cooling System: Maintains 4 °C at max RPM, range –20 °C to +40 °C
Refrigerant: Gas R 449A HFO (CFC free)
Control: Microprocessor controlled, brushless induction motor
Timer: 5 sec–99 min or 1 min–99 hrs, programmable
Noise Level: <65 dB
Memories: 16 programmable
Safety: Automatic lid lock, unbalance detection, overspeed protection
Dimensions (W × D × H): 270 × 650 × 280 mm
Net Weight: 41 kg
Voltage / Frequency: 220–230 V / 110–120 V | 50–60 Hz
Power Consumption: 580 W
