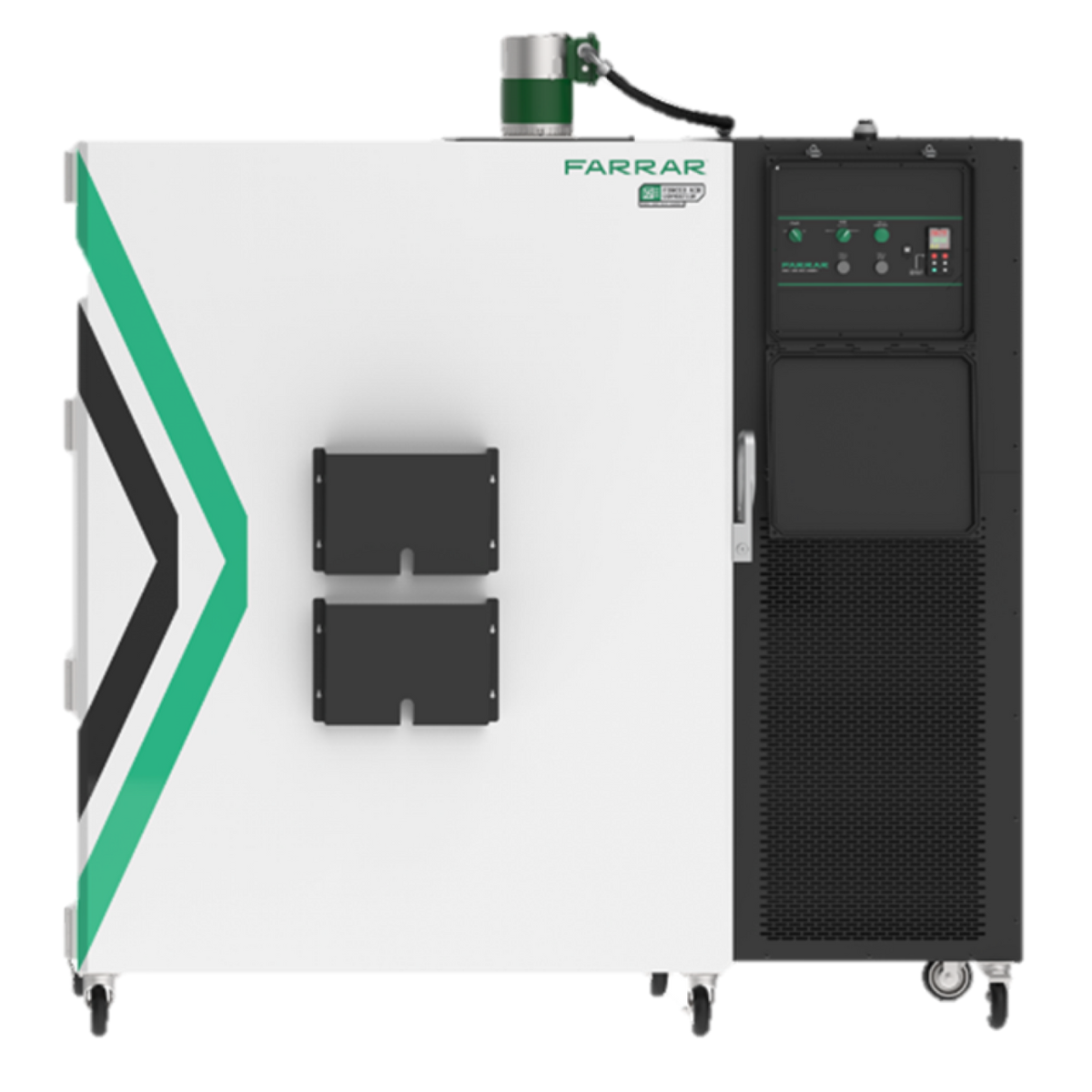

The 4000 Series Controlled Rate Chamberoffers uniformity and repeatability inrapid, controlled freezing and thawing applications.Our technology uses forced air circulation to provide efficient pulldown from ambient to the desired temperature. Forced air circulation allows the rapid pulldown process to extend to the fluid core, avoiding false freezing points and optimizing the freezing process (1,000 CFM air circulation).

This unique, convection-based, controlled freezing and thawing process eliminates uncertainty and allows temperature-specific conditioning to satisfy processing and shipping protocols for various pharmaceuticals. Our4000 Series Controlled Rate Chamberunits can meet your freeze/thaw application needs from +40°C to -80°C

Data Sheet

Applications: Pharmaceutical, BioProcessing

Controls: Fixed Controls

Temp Range: +40°C to -80°C

Storage: 23.3 cu ft / 659.8 l

Electrical:

208/240 VAC, 3 Ø, 60Hz, 26 FLA (North America)

400 VAC, 3 Ø, 50Hz, 24 FLA (International)

Performance Data:

Pull Down Empty Chamber < 38 minutes from +25˚C to –80˚C

Door Open Recovery @ –80˚C < 10 minutes

100L Load +25˚C to –80˚C < 12 Hours

Uniformity Air Temperature +/- 2.0˚C

Uniformity Product Temperature +/- 1.0˚C

Refrigeration System:

Heat Transfer Convection, Air Flow

High Stage R-449A

Low Stage R-508B

Defrost Auto defrost program, EZ1 Key Touch

Heat of Rejection – Air Cooled 38,000 BTU/hr (11 kW/hr)

Heat of Rejection – Water Cooled 1,700 BTU/hr (0.5 kW/hr)
