Ortoalresa Consul 22 Refrigerated Centrifuge – Compact, High-Capacity, TFT Touchscreen

Ortoalresa Consul 22 Refrigerated Centrifuge – TFT
Touchscreen, High Capacity, Advanced Controls

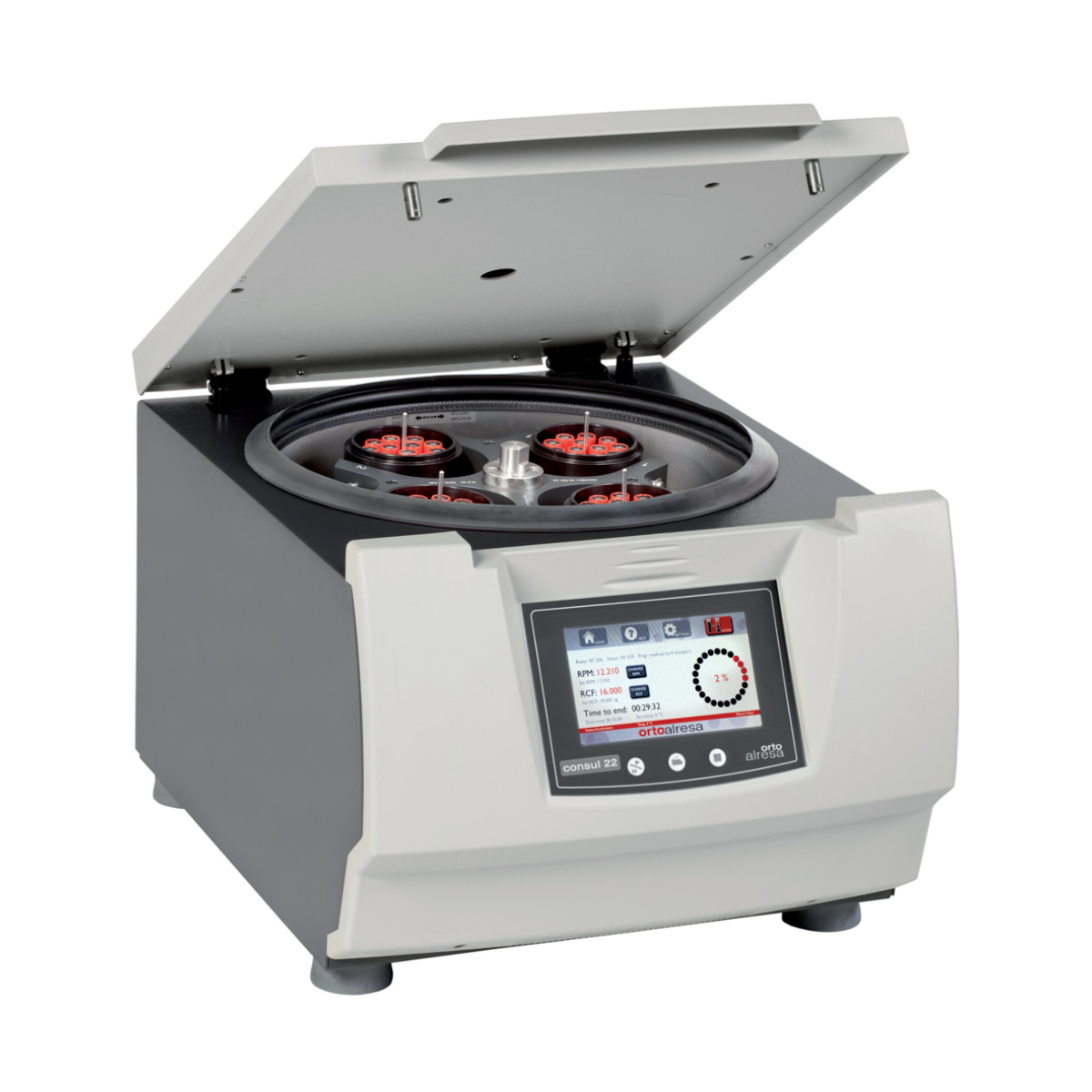

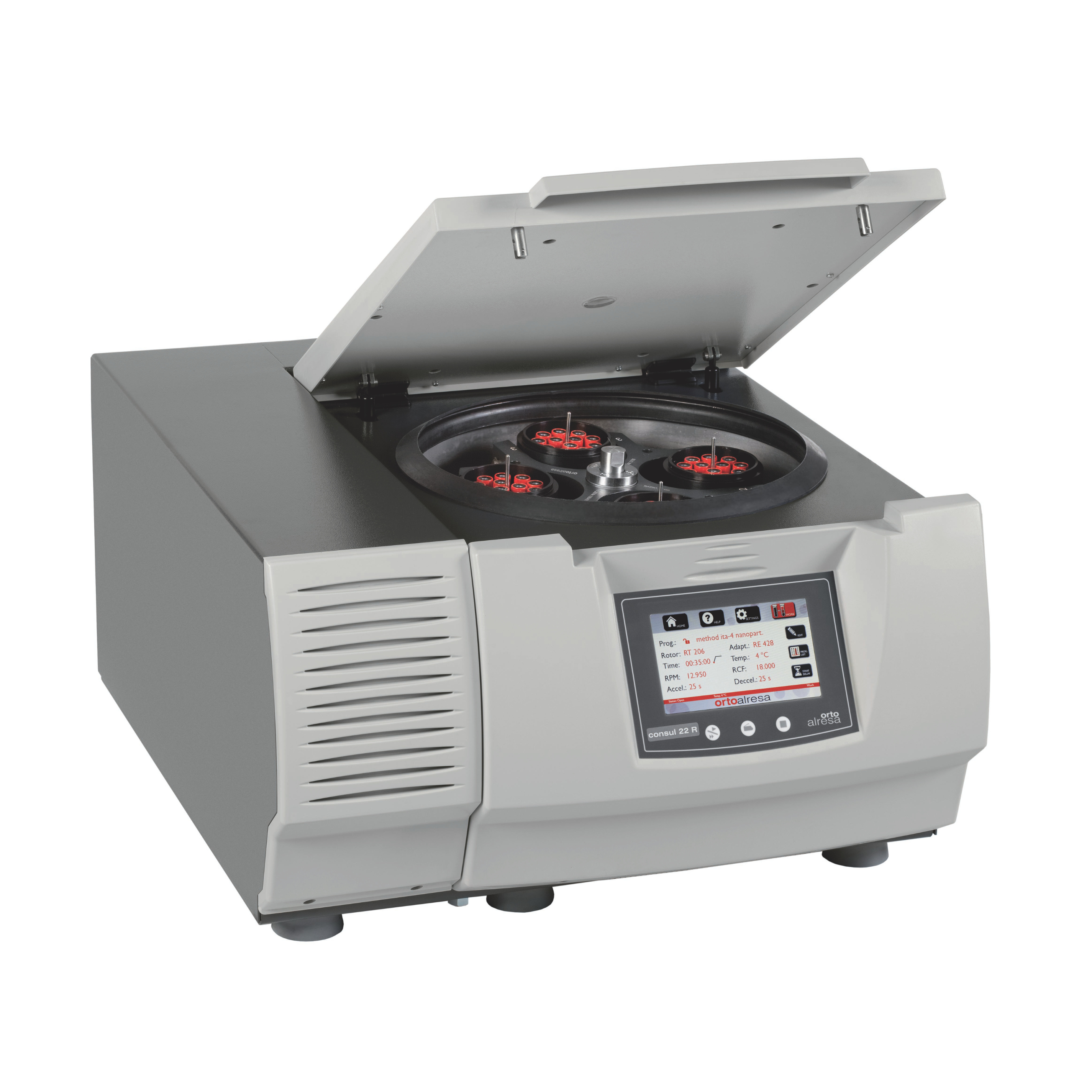

The Ortoalresa Consul 22 is a high-performance
refrigerated centrifuge that delivers compact design, exceptional capacity, and
advanced programmability. Designed for clinical, research, and biotechnology
environments, it offers precision and flexibility usually found in higher-end
equipment.

Key Features:

• TFT
  Colour Touchscreen (visible from over 3 meters) displays:
• RPM
  and RCF
• Run
  time and temperature
• Acceleration/deceleration
  curves (PCBS)
• Unbalance
  Location System (ULS)
• Real-time
  RCF values based on accessory configuration
• Speed
  programming in 10 RPM / 10 xg steps
• Count
  up/down timer from "0" or from set RPM/RCF
• Programmable
  timer from 1 second to 99 hours in 1-second increments
• Start
  delay to schedule cycle start times

Intelligent Control Systems:

• PCBS:
  Progressive Controlled Braking System with up to 175 selectable
  acceleration/deceleration ramps to prevent sample remixing
• ULS:
  Unbalance Location System indicates the exact bucket causing imbalance
• Linked
  Program Mode: Run up to 8 programs in sequence without user input
• 100
  programmable memories, with password protection
• Audible
  and visual alerts provide clear user guidance and safety notifications

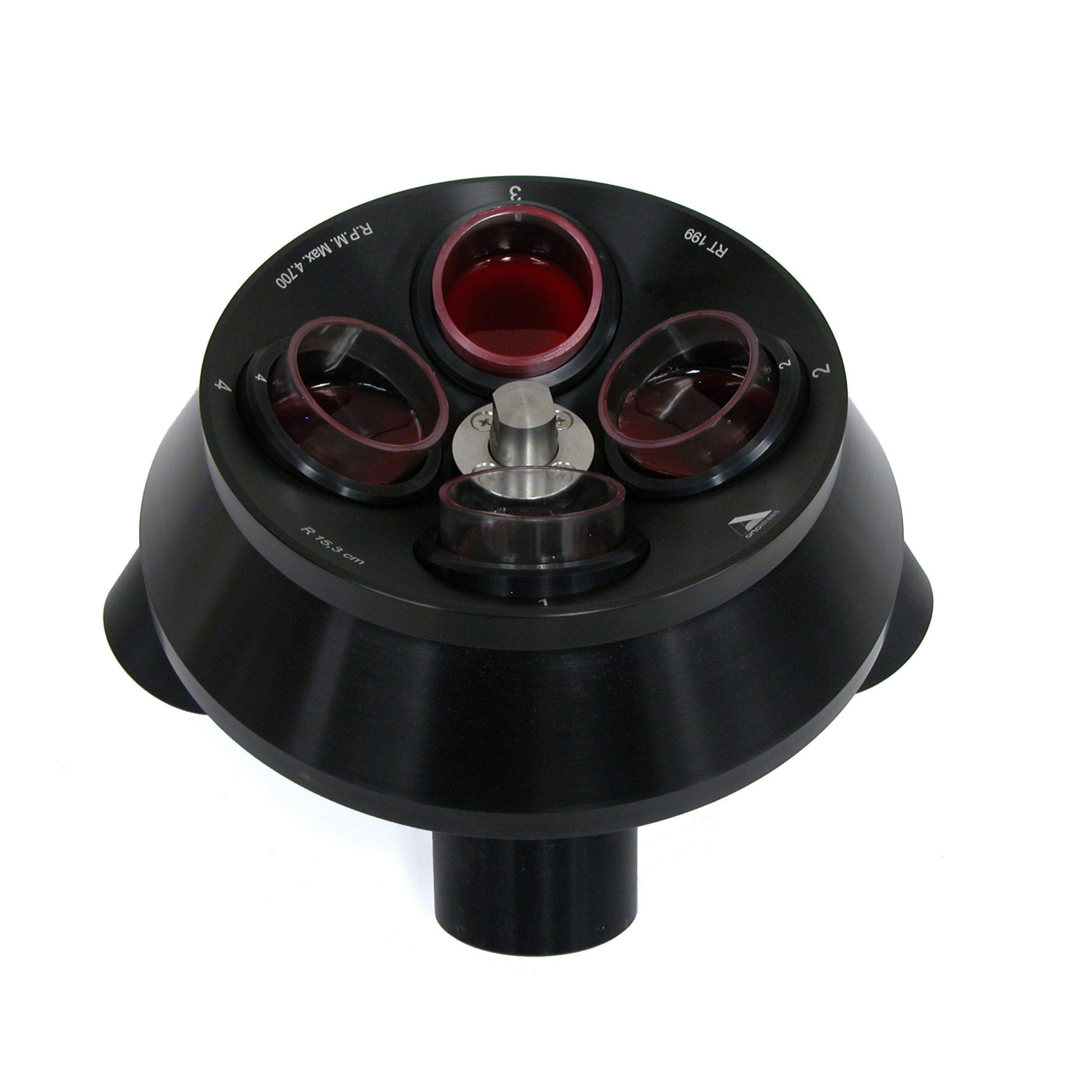

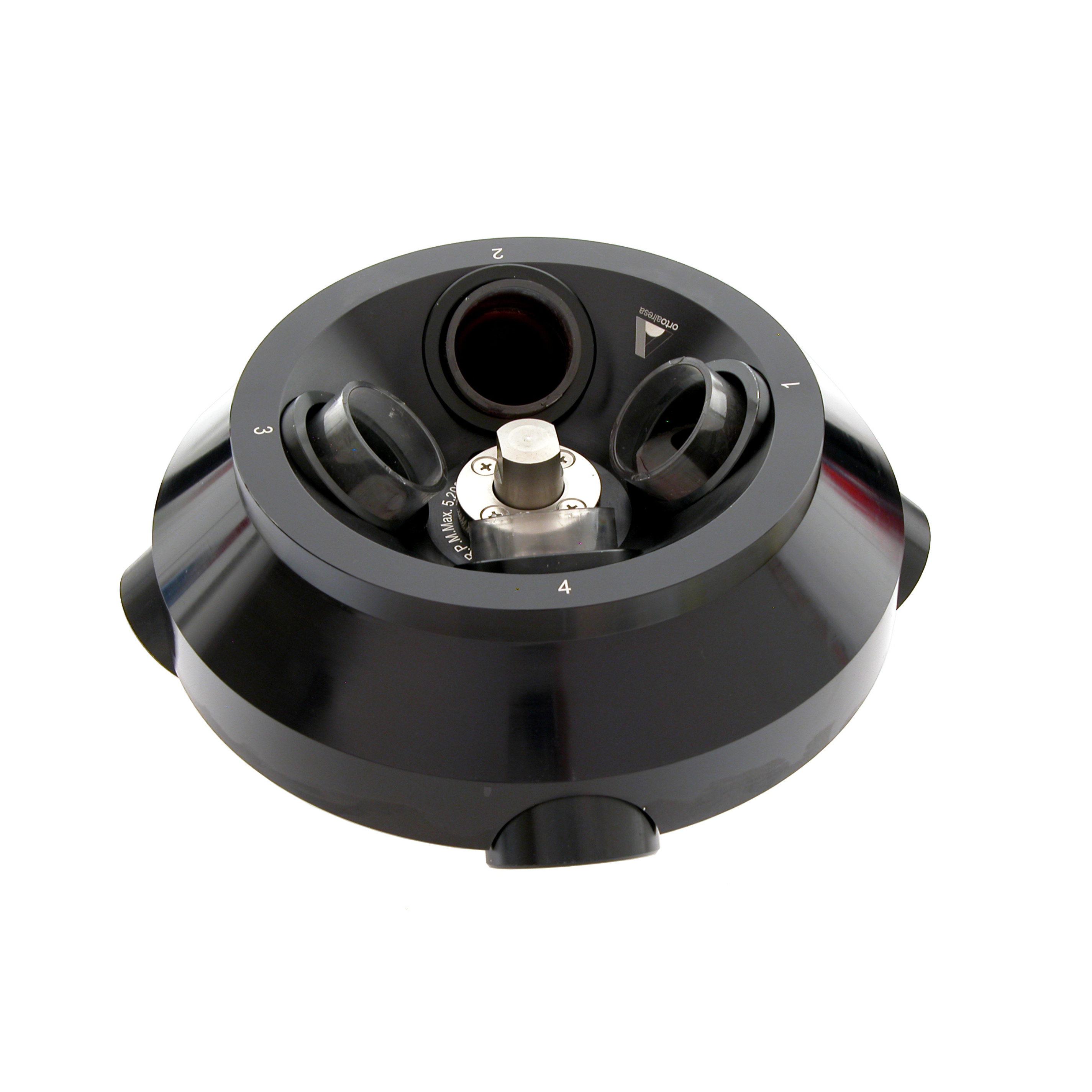

Rotor Compatibility:

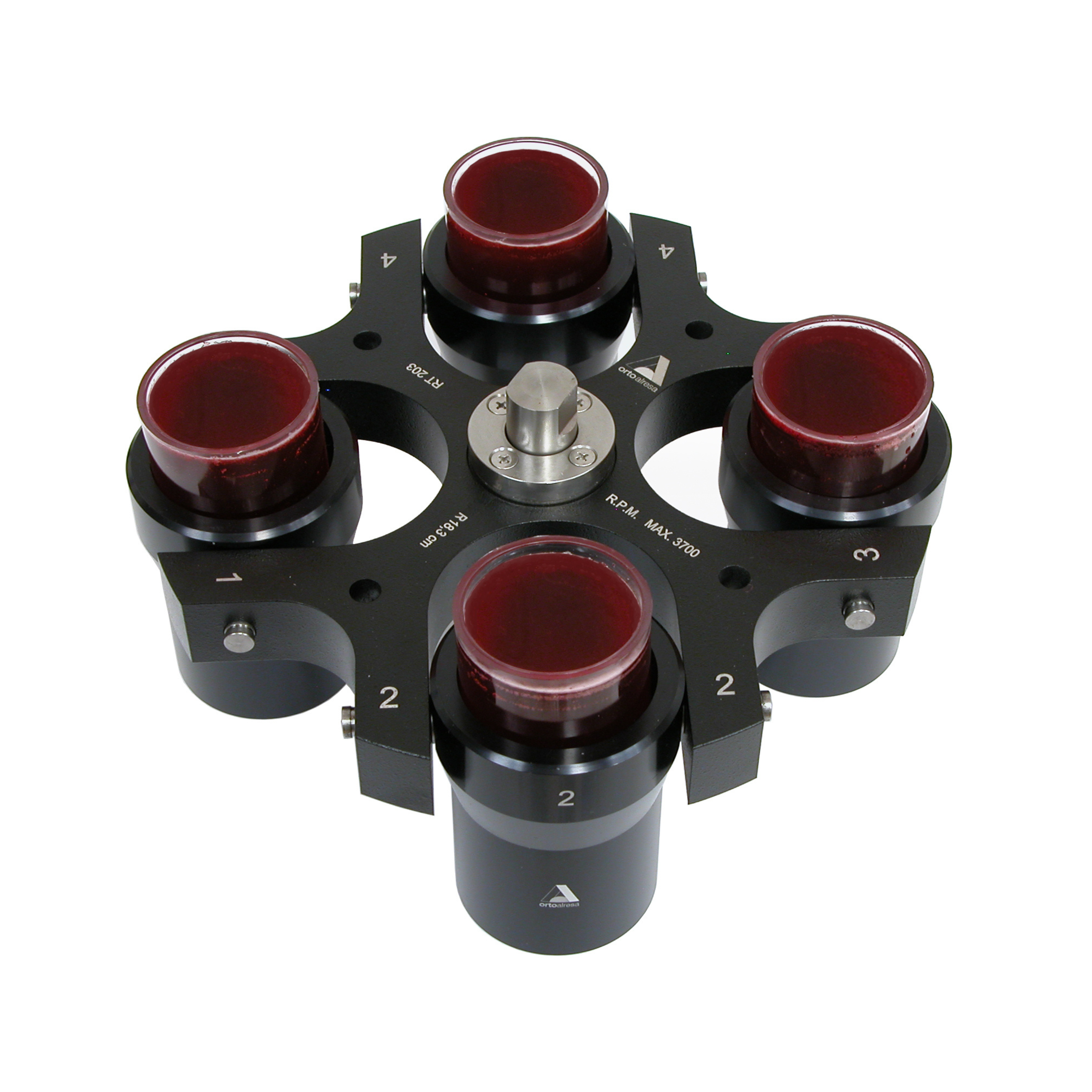

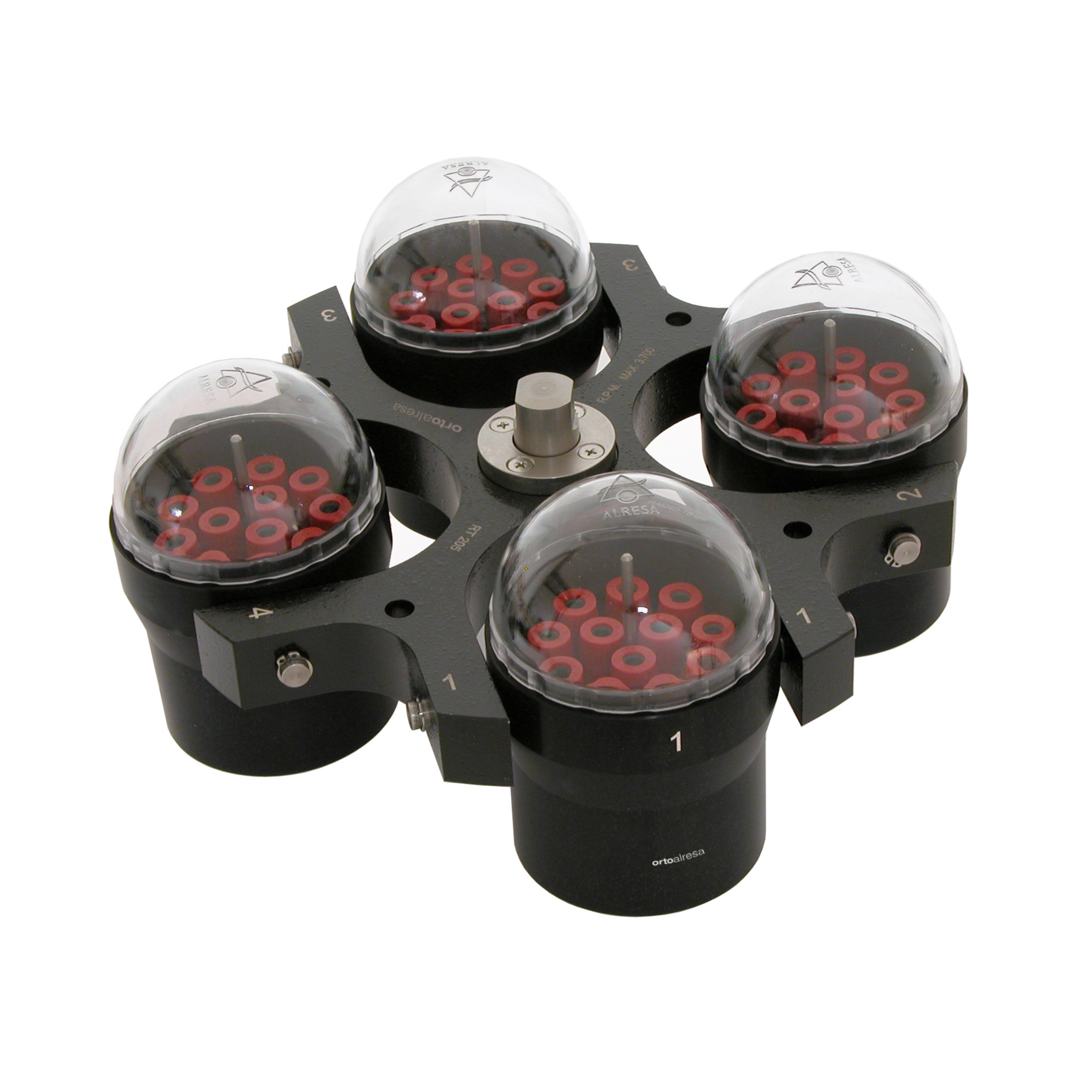

• Swing-out
  rotors up to 400 ml per bucket
• Microplate
  rotors up to 80 mm in height

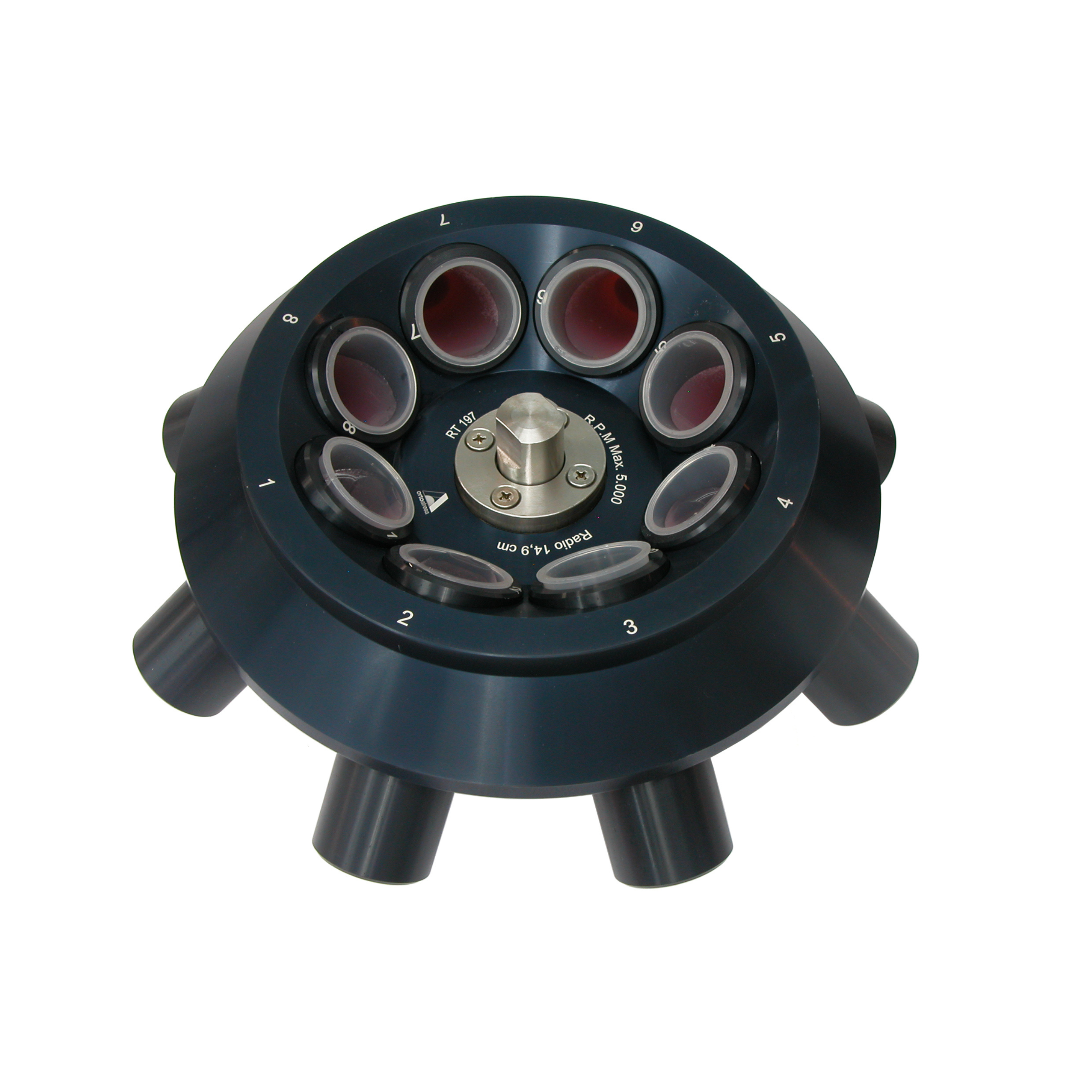

• Fixed-angle
  rotors for high-speed and microtube applications
• Wide
  range of compatible adapters available

This centrifuge is ideal for laboratories requiring
efficient cooling, high-capacity separation, and total control over settings.
Backed by Ortoalresa’s engineering excellence, the Consul 22 offers
reliability, versatility, and a streamlined user experience.

• Lid provided with security systems:
  – Automatic lid lock system, motorized with double lock.
  – Emergency lid-lock release.
  – Locking and protection against opening along the run.
  – Lid dropping protection.
  – Port in the lid for calibration and operation checking.
• Ergonomic design that allows close the lid effortless.
• Unbalance detection and switch off.
• Protection safety ring between the centrifugation chamber and the housing.
• Chamber of centrifugation in stainless steel (easy cleaning).
• Rotors can be removed with the lid closed.
• Rotors and adapters autoclavable, easy to install by the user.
• Automatic disconnection for energy saving up to 8 h.
