SCHMITZ DIAMOND® Operating Table
SCHMITZ DIAMOND® Operating Table
The DIAMOND® Operating Table from SCHMITZ sets a new benchmark for versatility and safety in surgical environments. Developed and manufactured in Germany, this operating table combines cutting-edge engineering, advanced electronics, and ergonomic design to meet the requirements of every surgical discipline.
Key Features:
Multidisciplinary use – adaptable for general surgery, orthopaedics, neurosurgery, urology, gynaecology, bariatrics, and more
Dual-level safety system – electrohydraulic adjustment with manual-hydraulic backup and emergency controls to ensure uninterrupted operation
Exceptional load capacity – safe positioning for patients up to 454 kg, supporting bariatric and complex procedures

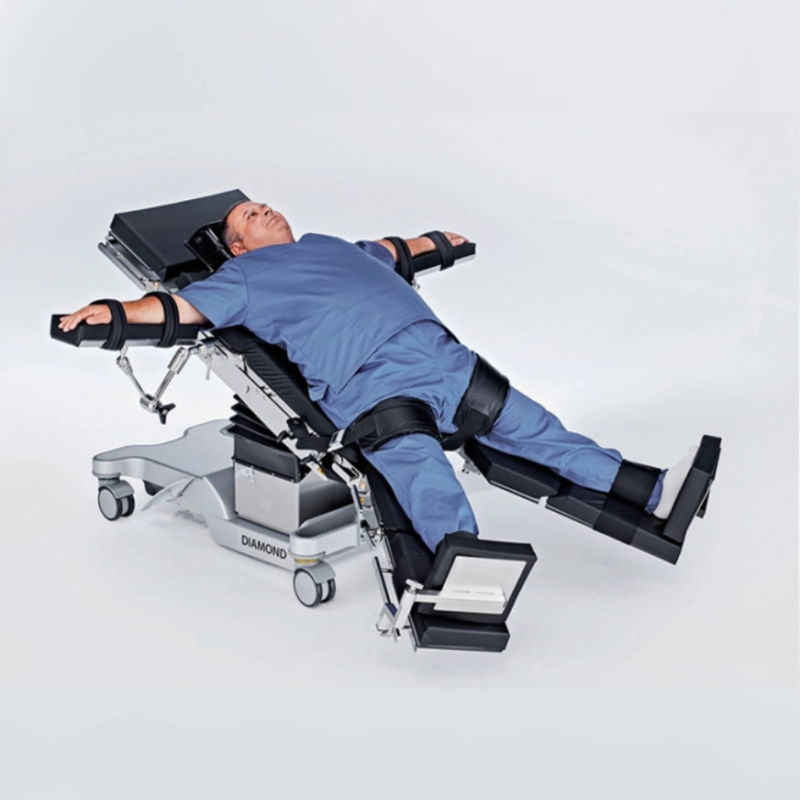

Flexible positioning – Trendelenburg, reverse Trendelenburg, lateral tilt, longitudinal shift (up to 300 mm), reverse mode, and memory storage for up to 8 positions (model dependent)
Future-proof electronics – in-house developed software with upgrade capability and intuitive wireless control options
Imaging compatibility – slim column design and radiolucent tabletop allow up to 98% body length x-ray coverage, with carbon accessories for enhanced imaging
Hygienic design – smooth stainless steel surfaces, gel-strip pad fastening, and optional cleaning shuttle for full underside access
Ergonomics & mobility – easy transport with large double castors, optional 5th castor, and recessed grips for simple handling
Models Available:
DIAMOND® 40 K / 40 LK – universal operating table, optional longitudinal shift
DIAMOND® 50 BK – enhanced electrohydraulic functions with memory positions
DIAMOND® 60 BLK – premium model with longitudinal shift and maximum adjustment flexibility
Accessories:
A wide range of accessories is available to customise the DIAMOND® for every surgical speciality, including headrests, carbon plates, extension devices, leg supports, and positioning systems. (View Our Accessories Range Here)
Why Choose SCHMITZ?
With more than 95 years of experience, SCHMITZ medical GmbH manufactures its operating tables in Germany to the highest quality standards, ensuring durability, safety, and cost-effectiveness throughout their lifecycle.
Product Description
Product Description
User Manual
User Manual

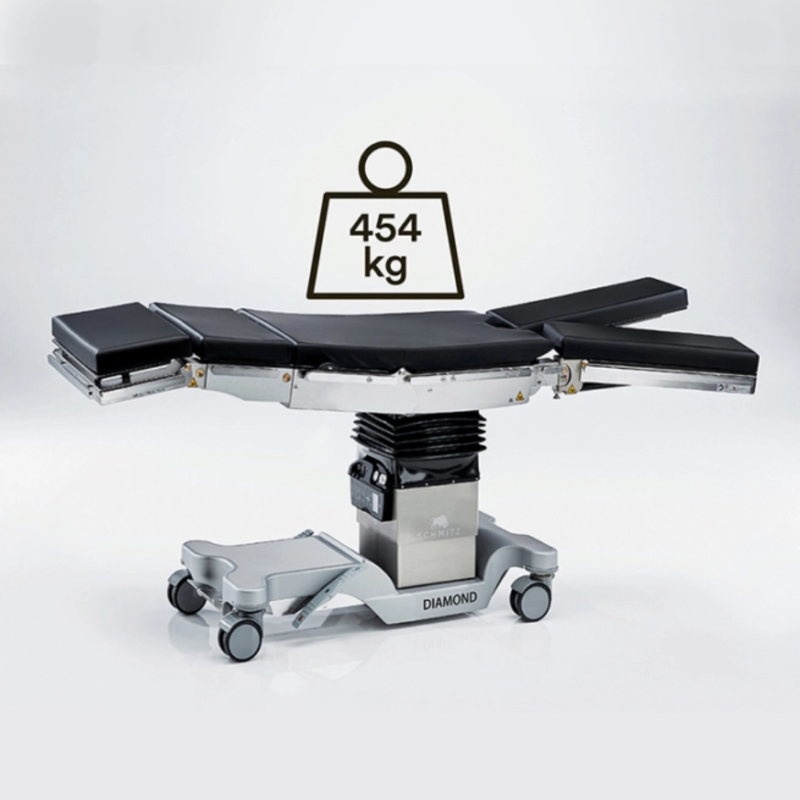

High Weight Capacity
The Diamond operating table from Schmitz, distributed in the UK by Medscience Distribution, has a 454 kg static working load and 360kg safe working load in both normal orientation and reverse mode with dynamic movement.
Unrestricted Functionality
- Trendelenburg and lateral tilt available in any position
- Precise, accurate patient positioning due to adjustable soft start function
- Programmable memory positions support complex positioning and save time
Reliability and Safety
- Minimised downtime in operating the table due to well thought-out backup systems
- Dual energy system: 2 independent battery blocks supply uninterrupted energy for approx. 2 weeks or average 100 cases
- Mains operation option

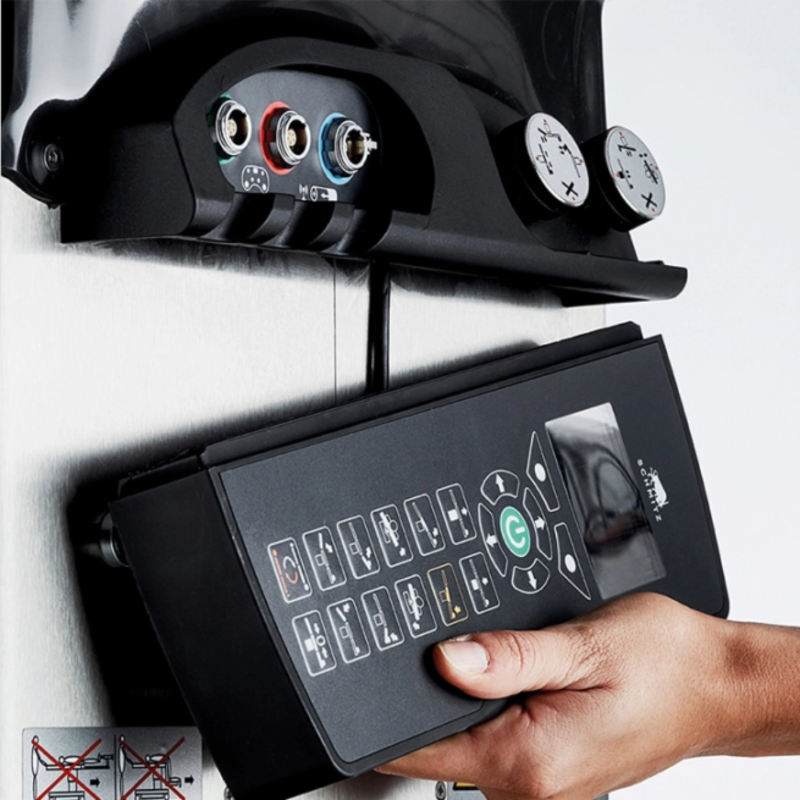

- Detachable additional emergency hand control unit
- Manual-hydraulic emergency backup ensures 24/7 functionality of the table even without power and in case of control failures
Infection Prevention

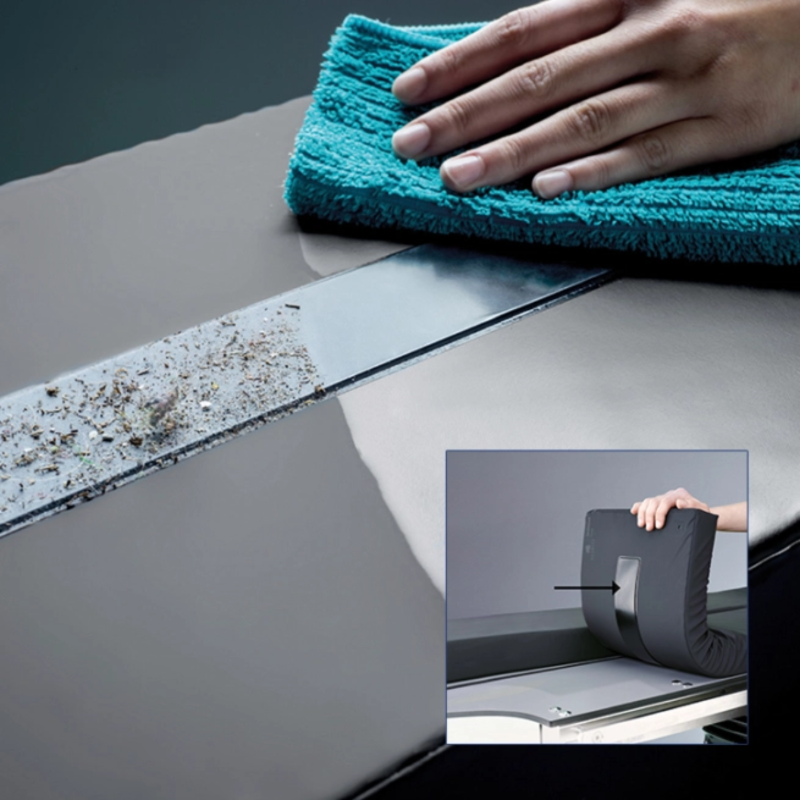

- Unique wipe-clean gel strips to secure the mattress pads (no Velcro®)
- Design features rounded screw heads and flush-mounted buttons to eliminate dirt or fluid accumulation
- Optional splash guard serves as protection in fluid-intensive surgeries.
- The cleaning shuttle accessory (unique to the DIAMOND table) allows easy access to the underside of the table for complete ‘under the caster and chassis’ decontamination
Connectivity and Future-Proof Software

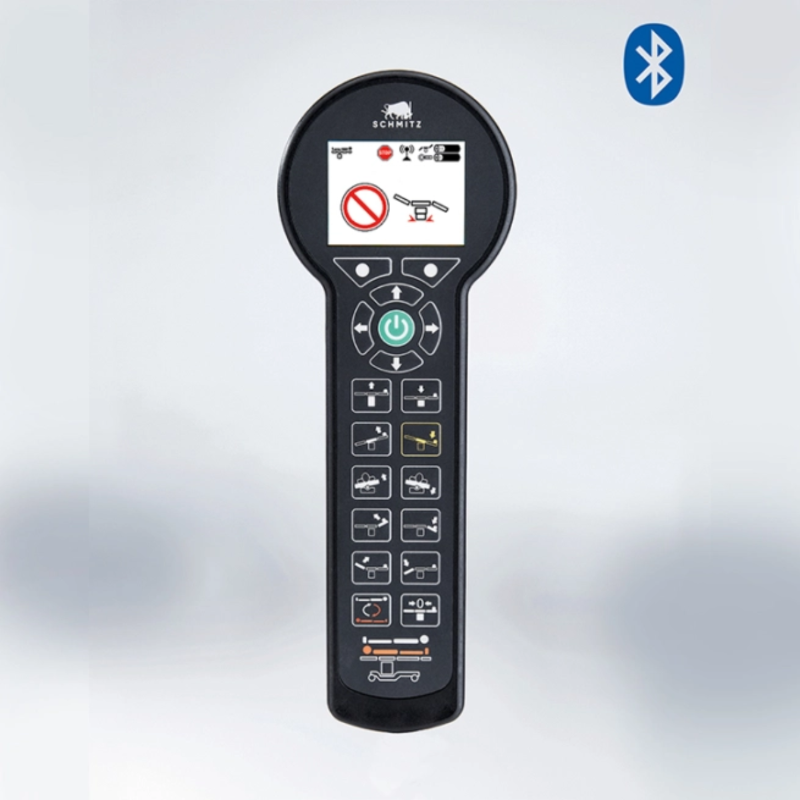

- Wireless operation via Bluetooth® eliminates signal interference
- In-house developed electronic parts and software
- Future proof software including updates and upgrades
- Motion-activated handset
DIAMOND operating table sensor system
- Collision detection helps to prevent accidental crashes

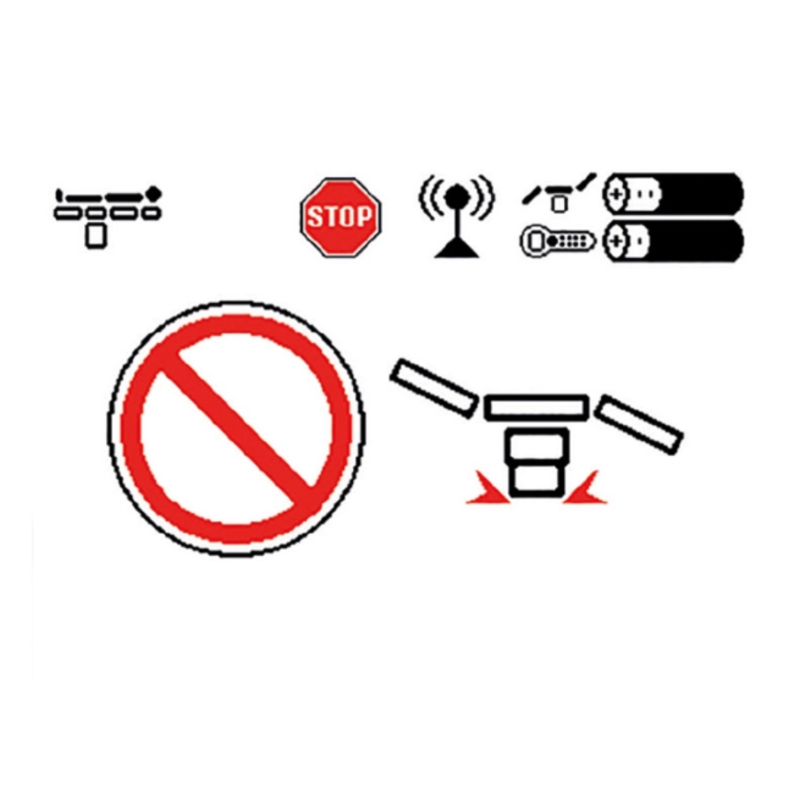

- The self-diagnostic system allows easy diagnosis thanks to displayed error codes without the need for external equipment
